A Professional Upgrade Kit
The BMG-HT is a high temperature resistant, rigid, strong, lightweight, and good-looking extruder. BMG-HT becomes our first Professional upgrade kit that will improve reliability and performance of professional and industrial grade 3D printers.
Lower Weight Load For Increased Performance
By using our 3:1 gearing ratio, we increased the available push force and resolution although using a pancake high temperature stepper motor. The lightweight stepper motor and the Aluminum housing lead the overall weight of the print-head down. Comparing the parts replaced and added in this setup for the Intamsys Funmat HT, we lowered the weight load from above 400g to less than 260g. An over 35% weight save that will have meaningful and positive impact on the printer’s performance:
- Less wear and tear of the linear motion systems;
- Better surface quality;
- Ability to 3D print faster.
Direct Dual Drive Extrusion
Like in all other Bondtech extruders the BMG-HT also uses our award-winning Dual Drive Gear Technology. You will experience effective and consistent extrusion no matter what material you are feeding to your printer. Our Dual Drive system will keep on going to help your Funmat HT laying down perfect layers and make your prints shine with a bright you didn’t think to be possible.

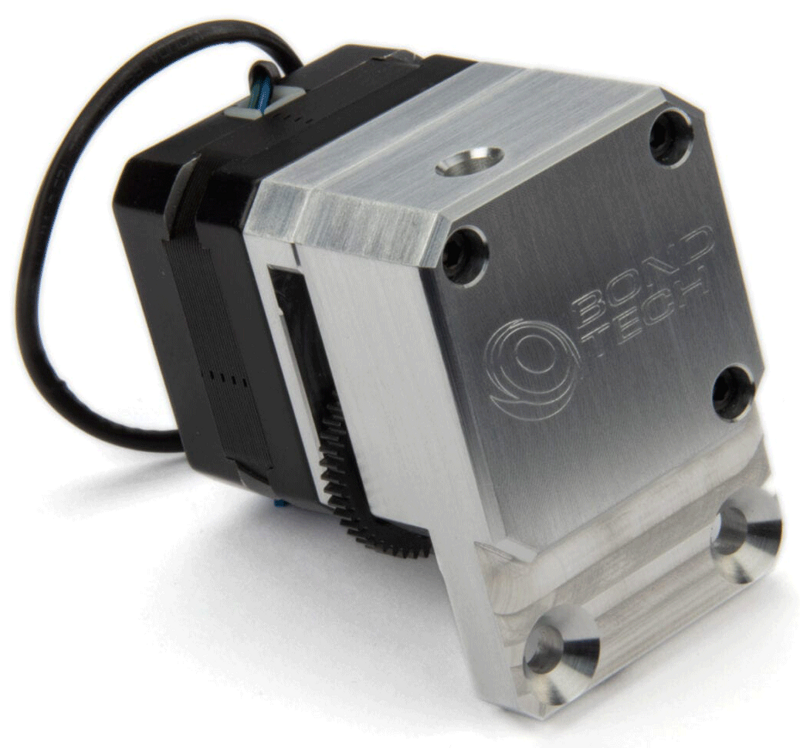

Bondtech BMG-HT for Funmat HT
