69%
Tests were conducted by AnkerMake in Sep. 2022 using AnkerMake FDM 3D Printer at operating speed of 250 mm/s.
Cut Printing Time By 75%
Tests were conducted by AnkerMake in Sep. 2022 using AnkerMake FDM 3D Printer at operating speed of 250 mm/s.

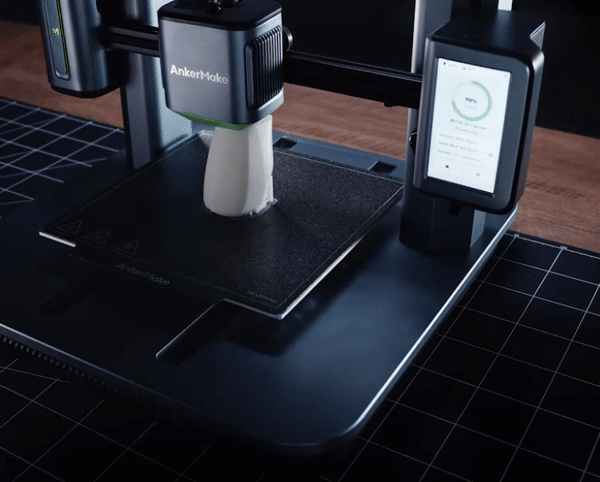

Driven by PowerBoost™You'll achieve high-speed precision thanks to PowerBoost™, which optimizes energy with its Y-axis transmission system. PowerBoost™ uses a powerful stepper motor, double-belt driveshaft, and stabilized-motion algorithm to push out loads of extra power for high-speed printing.
|

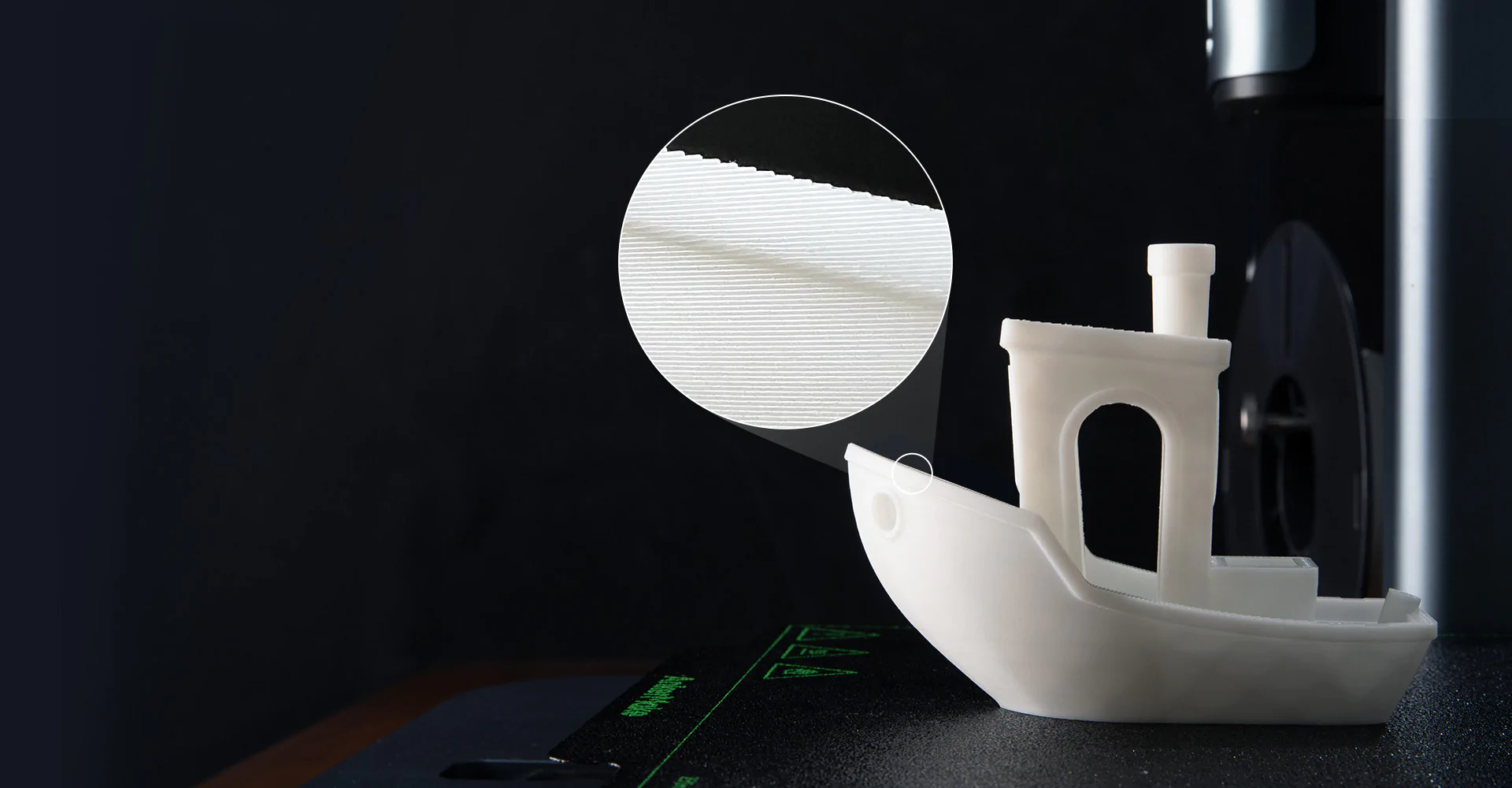

Precise 0.1 mm Detail
Never compromise on stable quality even when you're printing at 5X speed. AnkerMake M5 frees yourself from sanding with smoothness in every thick layer.

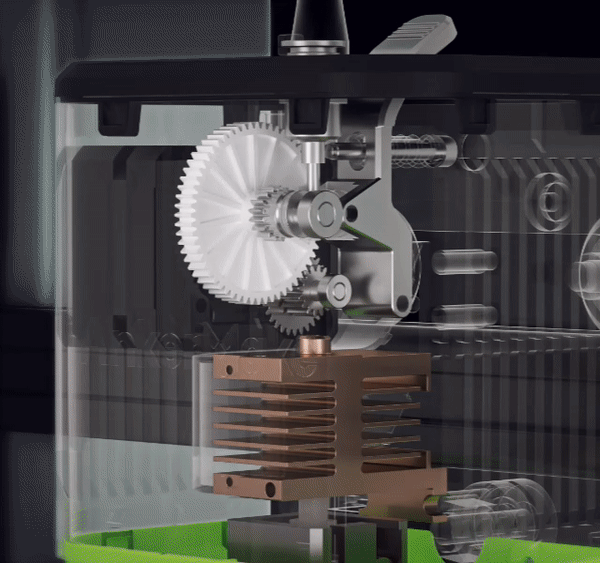

New Ultra-Direct Extruder
With a redesigned ultra-direct extruder, you feel the intricate details after a 5X faster print. The shortened distance between the extruder and nozzle reduces errors and enhances control for the precision. A proven algorithm analzyes and matches motion to extrusion. It was fine-tuned with more than 2,000 tests in the AnkerMake lab.
3.1X ExtrusionHigher Multi-Stage Gear Ratio The foundation of high-speed printing starts with the enhanced multi-stage gear system with a 9.37 reduction ratio putting out 0.8 N·m of torque. The strong twisting puts pressure on the melting chamber to make extrusion faster. |
|
1.5X MeltingLarger Heating Block The 60W heating rod quickly raises the nozzle temperature to 392°F (200°C) with 1.5X the efficiency of other printers. The heat makes sure the filament smoothly discharges while printing fast at 250 mm/s. |
|
1.3X CoolingMore Air Input Volume The double-cooling system uses a pair of fans that push out 1.3X the air output volume of other printers at max-speed. The cooling avoids stringing and helps quickly cool down your model. |

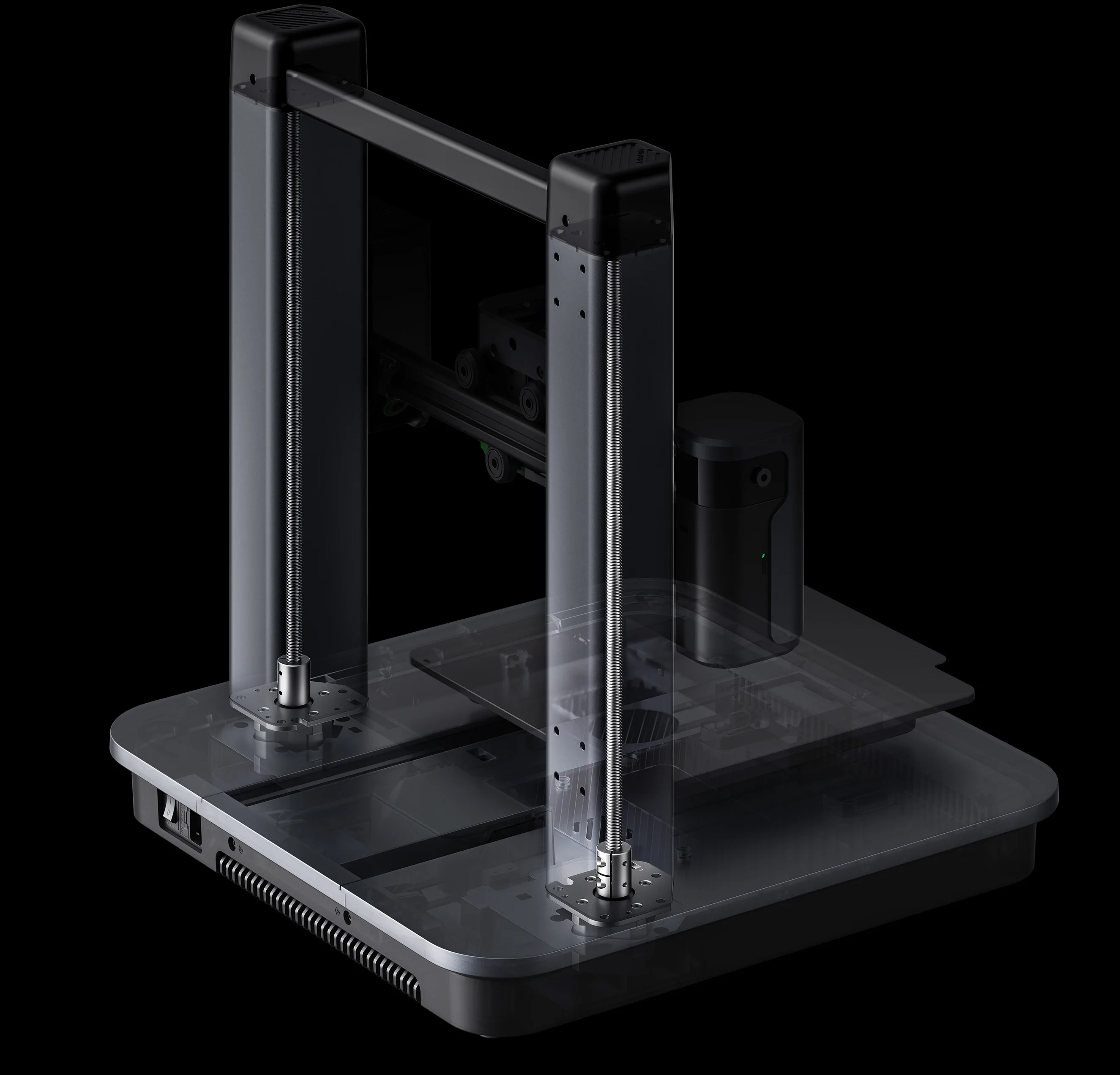

Integrated Die-Cast Aluminum Alloy
The integrated die-cast aluminum alloy structure and Z-axis design increase the weight of the base, reducing the center of gravity of the machine. The design makes printing more stable for fast speed and turbo acceleration. This also reduces installation errors for the base, improving printer accuracy.
Powerful Processing
M5 comes packed with two processors, including the XBurst CPU for intelligent 3D printing and Marlin CPU for routine processing. With the extra power, M5 keeps track of your prints so your model matches your design.
-
3-Core Heterogeneous CPU (1.2GHz ×2 + 240MHz)
-
Specialized for Image Recognition (VPU, ISP ×2, CIM)
-
Designed for the Artificial Intelligence of Things (AIoT)

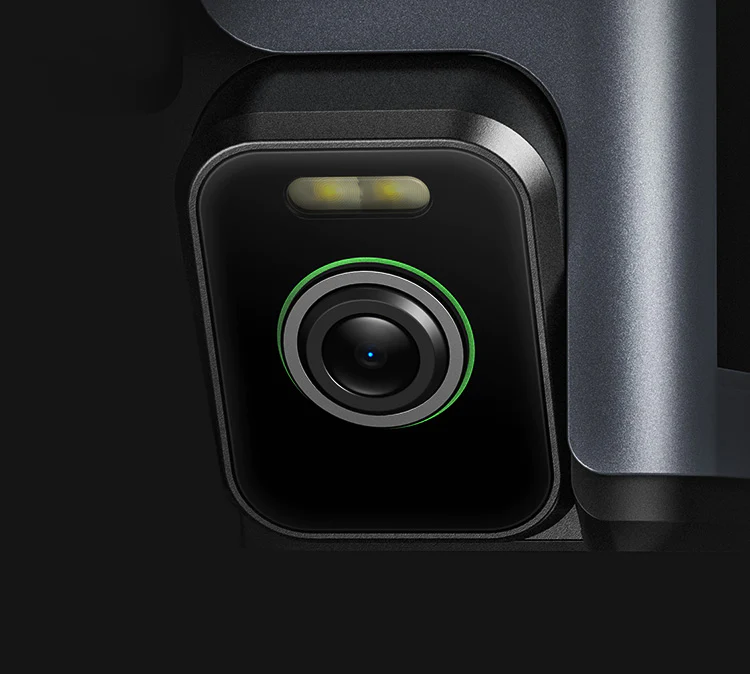

The Integrated Intelligent Camera
|
Worry-Free Printing with M5

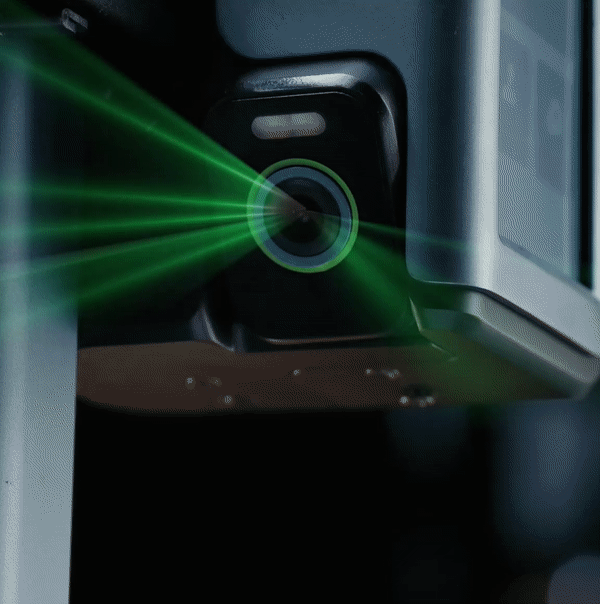

AI Camera Recognition SystemThe AnkerMake slicer analyzes the 3D data of the model before printing begins, then the AI Recognition System uses the powerful XBurst CPU to continually check and compare throughout the entire process. |
|

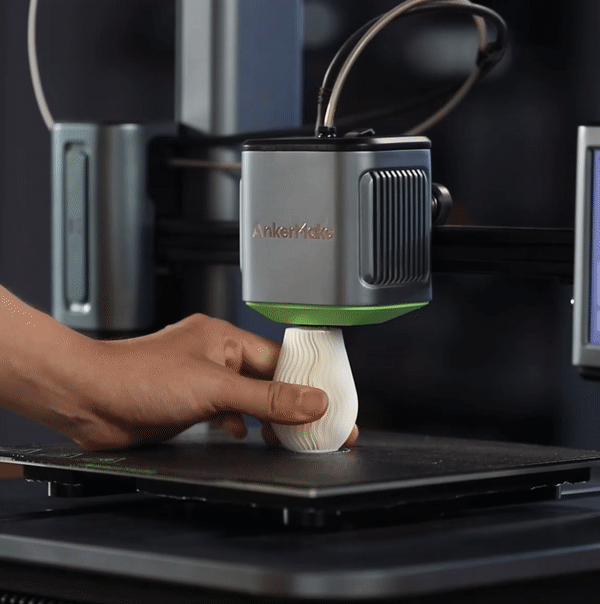

Error Detected, Instant AlertProtect Yourself From
|
|
Monitor Your Prints 24/7Check in when you want with real-time viewing via the AnkerMake app. Even if it's 3 AM, you can check on the progress of your print with adaptive light-sensing algorithms. Plus, timelapses look cooler after the sun goes down. |
|
Share Your TimelapsesFeel good about your creations and show them off with timelapses that are easy to share on social media. |
Start Prints Whenever, Wherever
Whenever the moment of inspiration strikes, you'll be able to access your prints wherever you are. You can even track prints, pause tasks, or modify settings.
AnkerMake Slicer |
|
AnkerMake App |
|
Alexa and the Google Assistant |
Make It Easy to 3D Print at Home

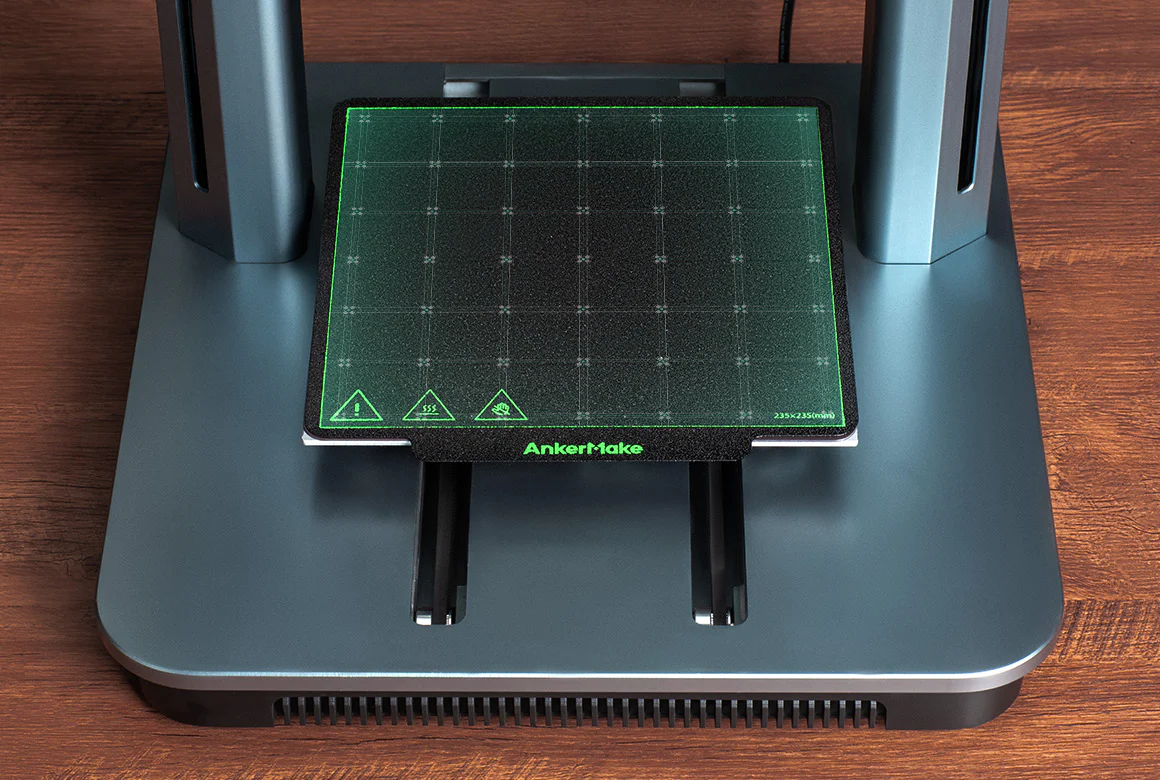

7x7 Auto-LevelingGive your prints accuracy with 7x7 auto-leveling. Advanced algorithms calculate a virtual height map to get the print started right. The only time you need to do any tweaks by hand is when you upgrade something major like the nozzle or PEI soft magnetic steel plate. |
|

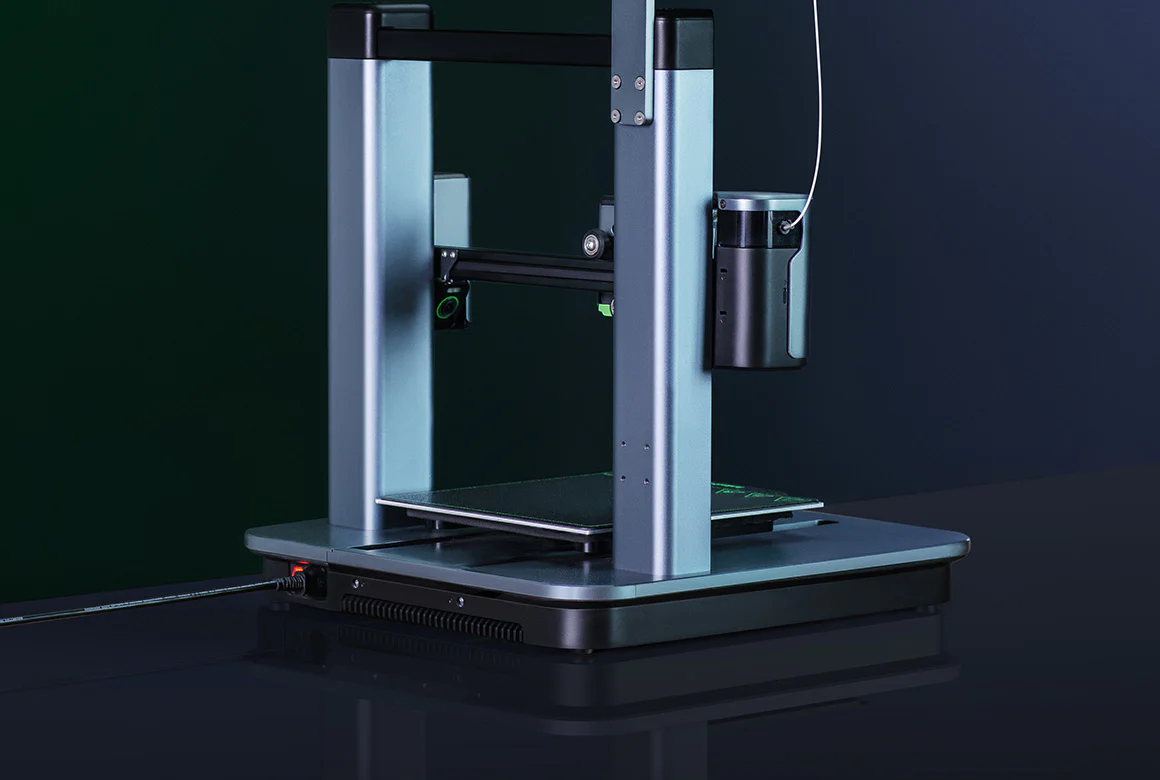

Integrated Design Keeps Your Workspace TidyAvoid tangled cables and multiple stray devices with 1 neat, cohesive design. M5 consists of the base and the gantry frame, plus the Z-axis design hides any dangling wires from your view. |
|

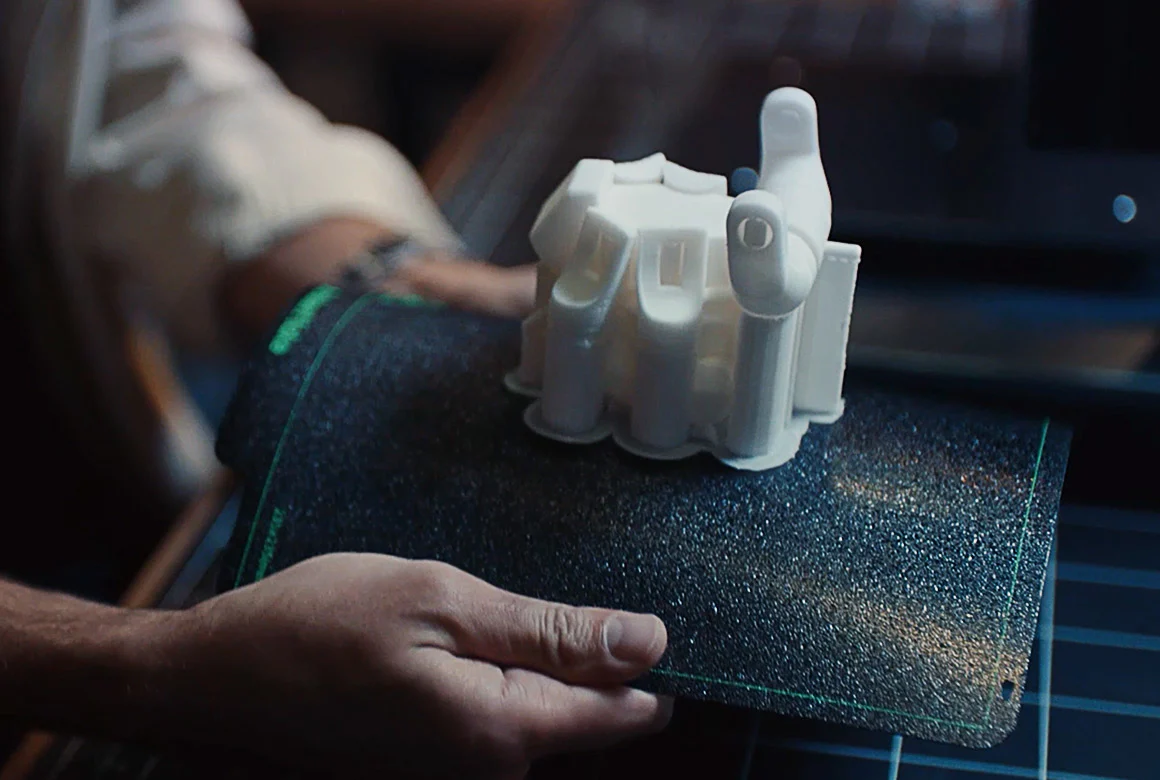

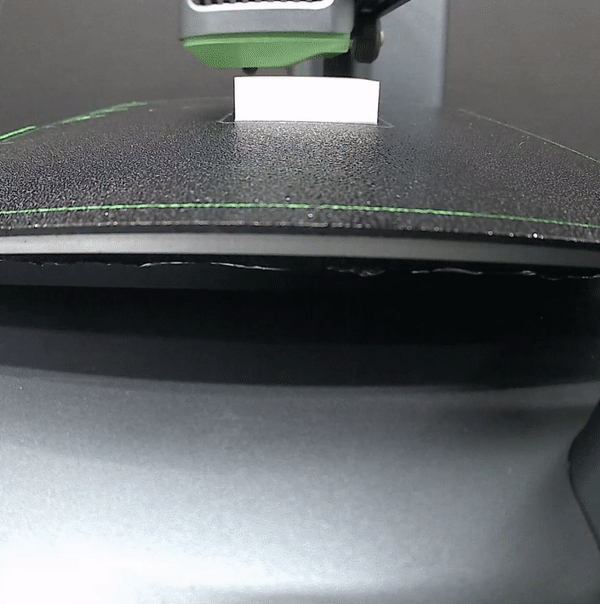

Bendable and Scratchproof PlatesNo matter how big or small, removing a print is now easy with just a slight bend of the scratch-resistant PEI soft magnetic steel plate when it cools down. And with the heated bed's magnetic design, you can easily remove and put the print sheet back. |
|

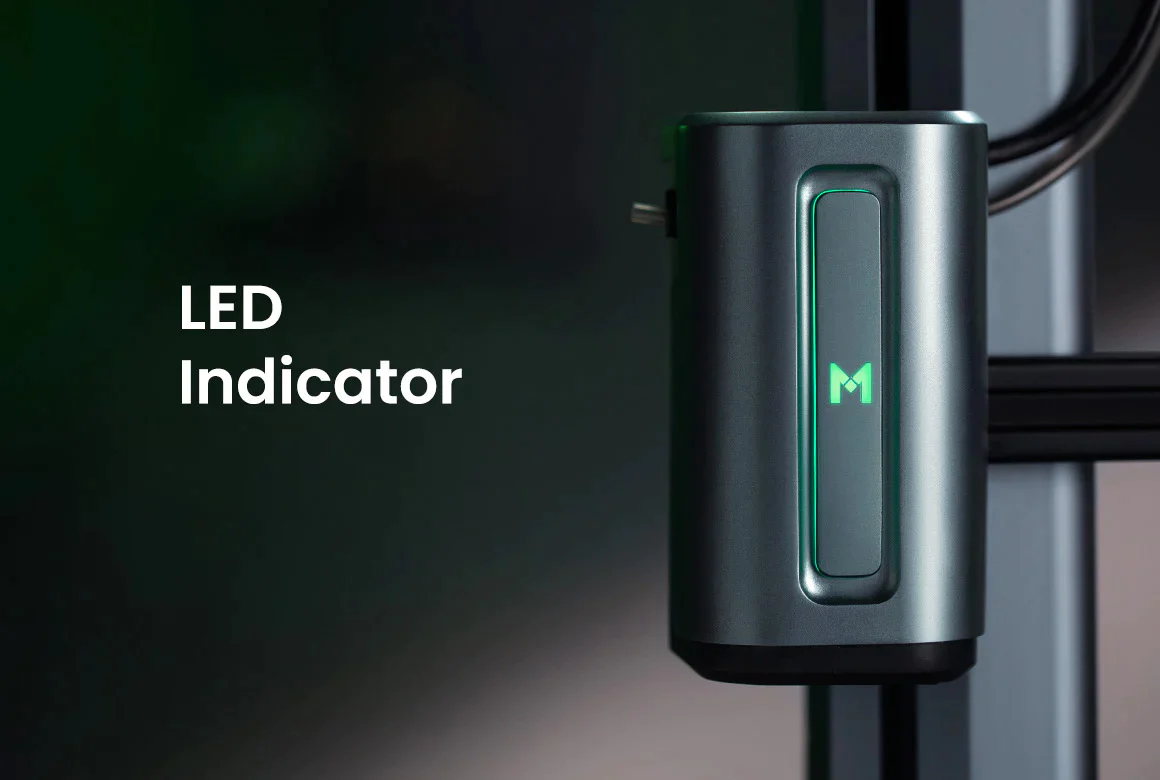

Get Printing Status NotificationsYou've got your choice of how to find out when something changes with your 3D print. See an LED light 33 ft (10 m) away, hear a beep, or get an app alert. |
|

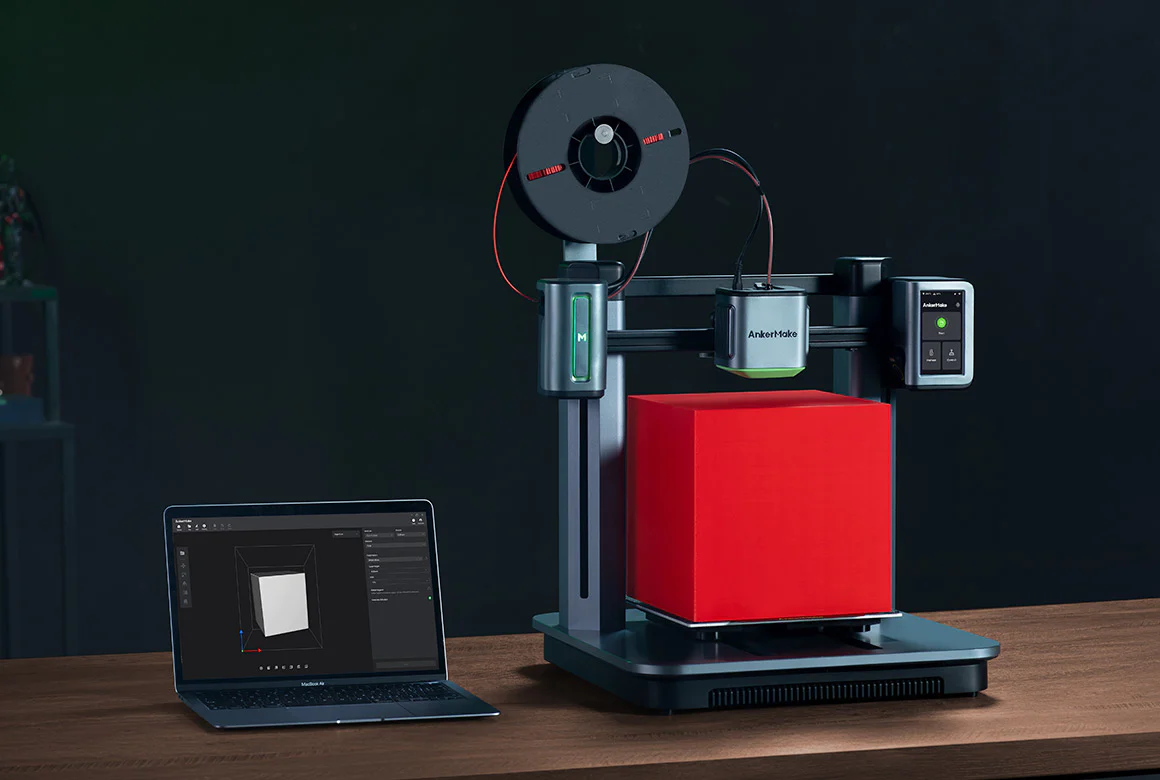

Print Large Models with High-Speed EfficiencySupersize your prints to a whopping 235×235×250 mm³ and watch M5 handle the job fast at 5X speed. |
|

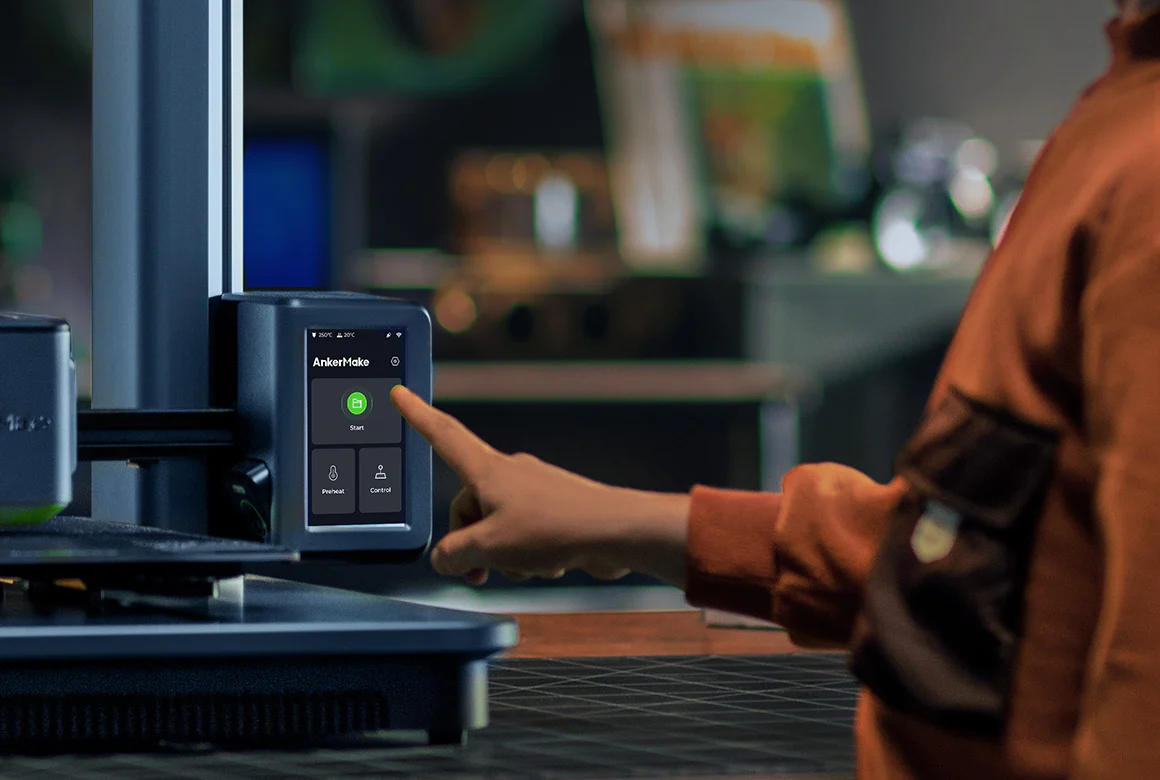

4.3" Touch Screen Simplifies PrintingMake the most common tasks easy with a smart, colorful LCD touchscreen. You can also switch to Night Mode to help your eyes when you're working late. |
|

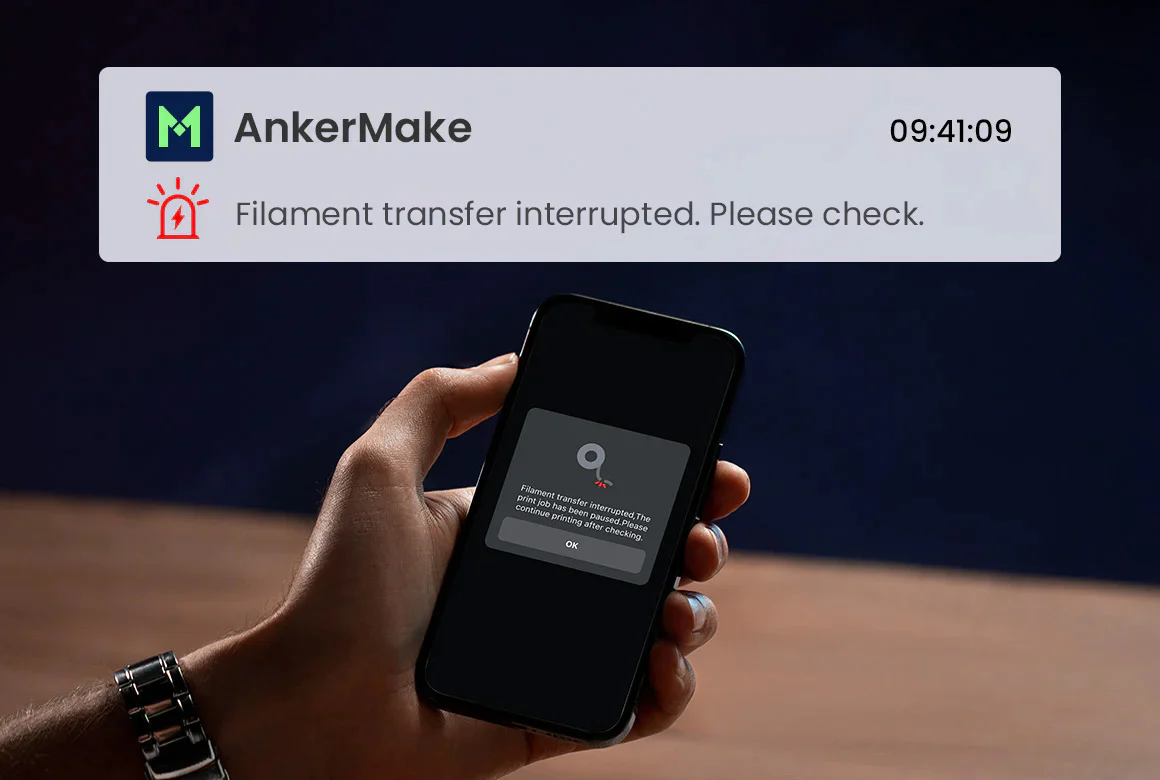

Save Material with Instant AlertsNever waste a moment or an ounce of filament again with low filament and error alerts. M5 scans before and during the print to ensure your print comes out exactly to your specifications. |

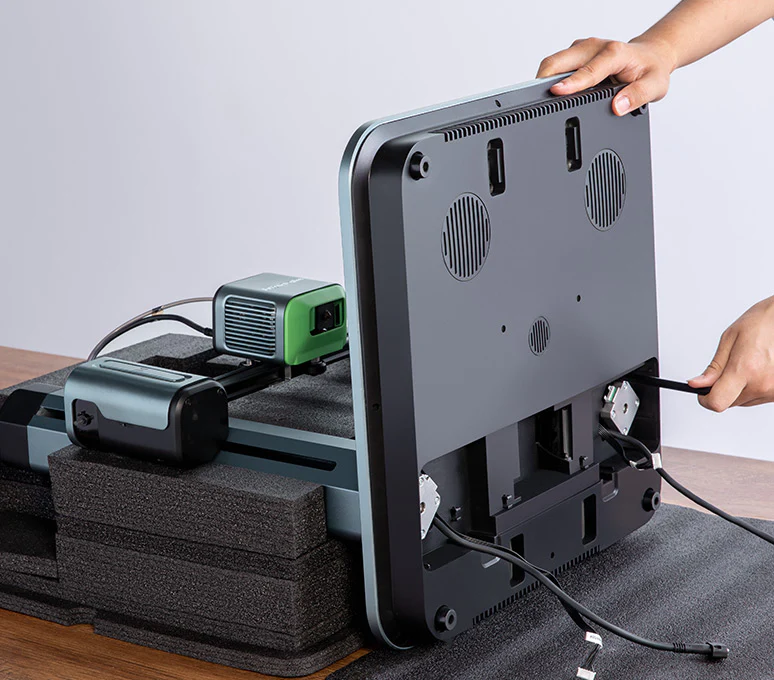

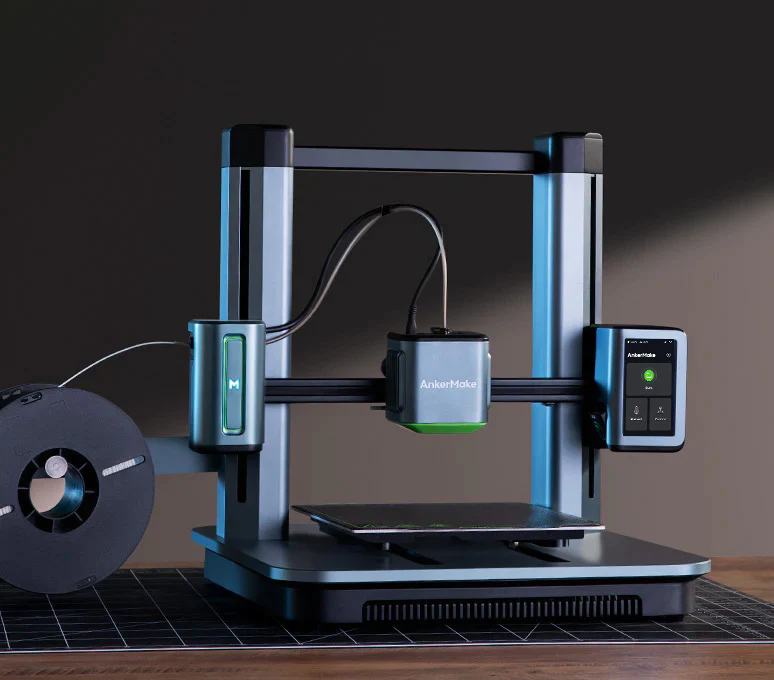

Assemble Easily
It doesn't take a degree to assemble M5, just 15 minutes from the time M5 arrives at your door.

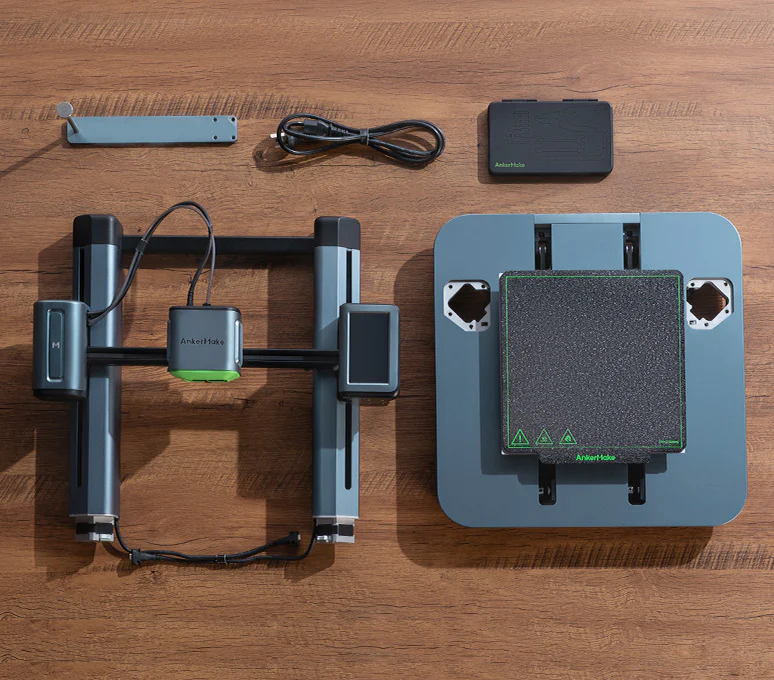

Take out all the accessories. | Fasten the screws at the bottom. | Start your print. |

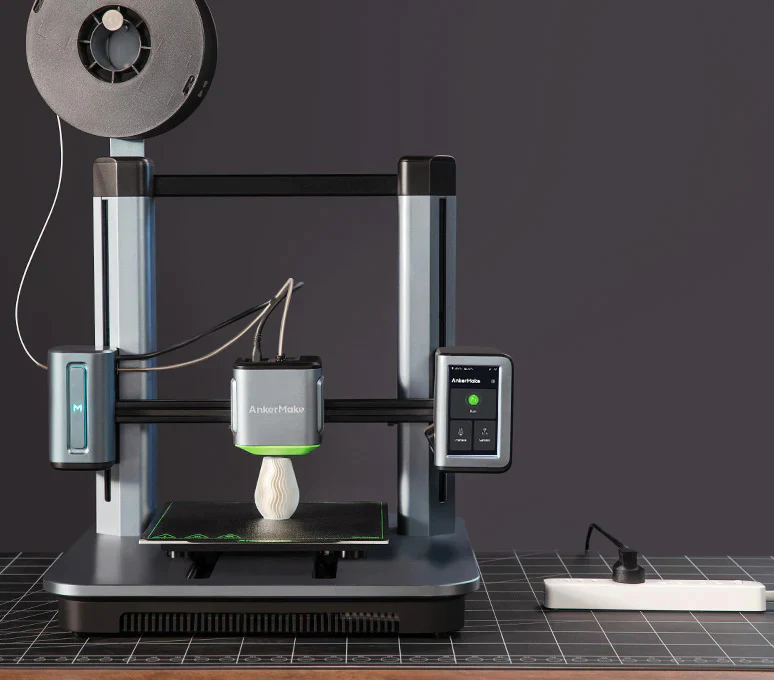

Picks Up Prints After Outages
Keep your print going with safe storage during power outages. If the power goes off, the printer saves the current layer, then resumes the print when the power comes back.
Just Unplug | Plug Back In | Watch Print Resume |
Reduce Energy Use by 59%
Printing time isn't the only thing getting cut by 70%. Help the planet as you cruise along at 5X speed.
Construction an Technical Details | |
Usable Nozzle Type | Ankermake M5 |
Usable Filament Diameter | 1.75 mm |
Max Nozzle Temperature | 260 ºC |
Open Filament System | Yes |
Extruder Type | Direct drive |
Recommended Printing Speed Max | 500 mm/s ( |
Build Area | 235 mm x 235 mm x 250 mm |
Build Plate Temp Max | 100 ºC |
Build Plate Surface | PEI |
Build Plate Material | Flexible Steel Plate |
Build Plate Attachment | magnetic |
Build Chamber During Process | Open |
Extruder Number Of | 1 |
Installation Space / Requirements | |
Total Mass Overall Dimensions | 502 mm x 438 mm x 470 mm |
Total Weight | 12.4 kg |
Max Power Consumption | 350 W |
Voltage | AC: 100 V - 240 V |
Equipment | |
Hepa Filter | No |
Filament Runout Sensor | Yes |
Filament Clogging Sensor | Yes |
Power Loss Fail Safe | Yes |
Touch Screen | Yes |
Camera | Yes |
Memory Internal | Yes, 8 Gbyte |
Connection | |
USB Port | Yes |
WLAN | Yes |
Cloud Control | Yes |
Accuracy | |
Resolution | 0.1 mm |
Shipping | |
Shipping Weight | 14.8 kg |
