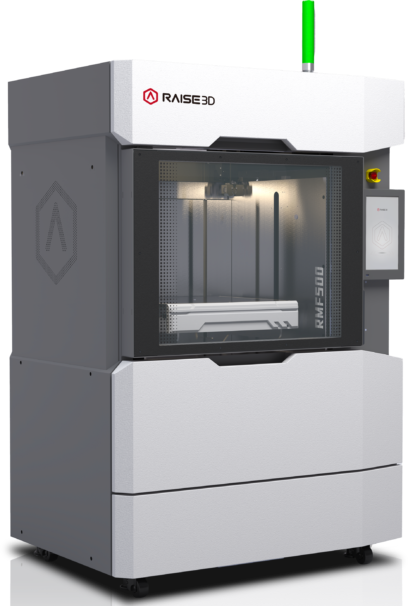

Raise3D RMF500

RMF500

The RMF500 was conceived to allow Raise3D’s industrial customers to expand their business to a more demanding level, where they can precisely and repeatedly fabricate end-use parts made of carbon fiber reinforced material at high speed.

Highly Accurate Production Repeatability

With its linear motors, the RMF500 can execute models with an accuracy of 0.001mm along the X and Y axes. Meanwhile it achieves precision of 0.0009765mm along the Z axis. Its 1μm closed-loop synchronous control reduces speed variations with load changes of the motor, enhancing precision even further.

High Speed and Large Build Volume

The RMF500 has a large 500 x 500 x 500mm build area and can reach print speeds of up 300mm/s along with an acceleration of up to 2G and movement of up to 1000mm/s. Furthermore, with its Independent Dual Extruder system (IDEX), it is possible to execute 2 print jobs simultaneously, making the RMF500 even quicker and more productive.

The ability to use High-Performance Material

Raise3D’s material scientists insistently worked to determine the best materials for reliable, uninterrupted printing of strong end-use parts. The result is a carbon fiber reinforced filament with higher rigidity and lower shrinkage ratio, it does not need a heated chamber to avoid warping, as is so customary in 3D printing. This leads to a far more efficient printer, that does not need to draw so much power, using 120W to power a single hotend. The resulting parts made from the carbon fiber reinforced filament are lightweight yet extremely strong, making them a potentially perfect alternative to metal parts.

Non-stop printing

To ensure customers experience trouble-free, uninterrupted printing, the RMF500 is equipped with four 2.5kg super large cartridge (main and auxiliary, with sets each), where the 3D printer can switch automatically between main/auxiliary cartridges and reducing the need for constant intervention. Positive pressure humidity control keeps chamber humidity under 5% relative humidity.

Sturdy, durable construction

Apart from all the other advantages, the RMF500 offers more benefits. All load-bearing structural parts of the RMF500 are made of high-grade harden steel, with the maximum load the Z-axis can withstand being around 100kg. The linear motor driven system has low clearance and low maintenance requirements. The deflection error of Z axis with a high load in the entire moving range is estimated to be 50% lower than that of competitive products.
