A high-performance composite filament for end-use applications
Raise3D Industrial PPA CF Filament is carbon fiber reinforced composite filament material based on PPA (polyphthalamide or high-performance/high-temperature Nylon). Thanks to its high performance Nylon matrix, this composite filament has superior mechanical and thermal properties than other Nylon filaments. With well controlled dispersion and length-distribution of chopped carbon fibers (15 wt.%), the PPA CF has lower density, lower moisture absorption, high strength and rigidity, high wear and creep resistance, excellent chemical and heat resistance. It is promising for end-use applications in automotive, aerospace, electrical and electronics (E&E) industry.
Applications
- Automobile
- Aerospace
- Electrical and electronics (E&E) industry
- Industrial end-use parts
Benefits
- High Strength
- Heat Resistance
- High Stiffness
Recommended Print Settings
- Nozzle temperature (°C): 290-310℃
- Printing speed (mm/s): 30-120 mm/s
- Bed temperature (°C): 65-80℃
- Cooling fan: OFF
- Layer height (mm): 0.1-0.25 mm
- Drying temperature (°C): 80-100°C for 4 to 6 hours
| Basic Data | |
| Printing Parameter |

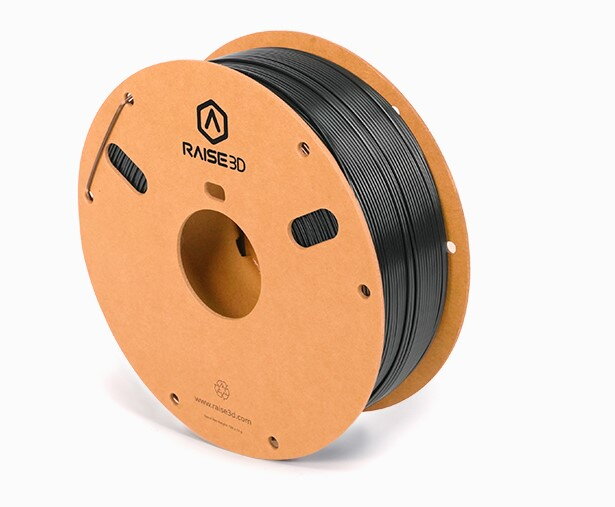

Raise3D Hyper Core PPA CF25 Filament
