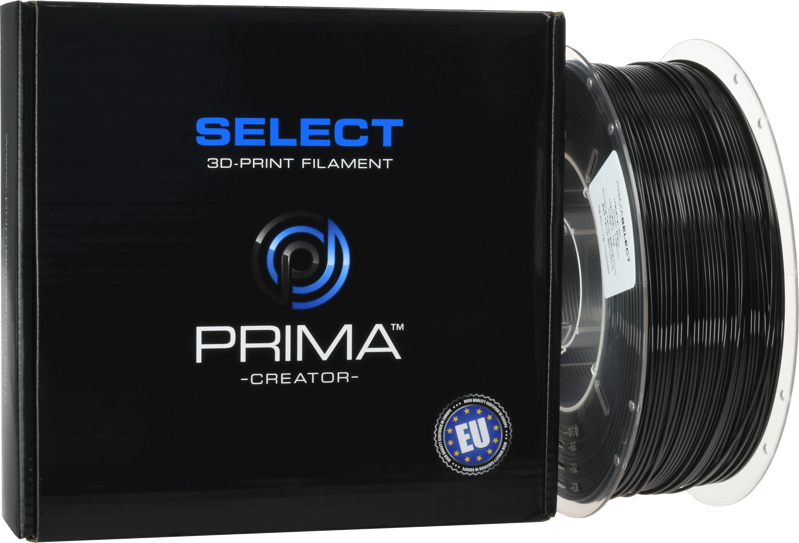

Prima SELECT PC-CF – High-Performance 3D Printing Material with Carbon Fiber
PC-CFs carbon fiber reinforcement ensures excellent layer adhesion and extreme rigidity, ideal for functional prototypes and end-use products. For optimal adhesion, use Magigoo PC, and a hardened steel nozzle (0.6-0.8 mm recommended) to avoid wear.
Features and Benefits:
- Offers outstanding rigidity and tensile strength for demanding applications.
- Withstands high temperatures, ideal for harsh environments.
- Maintains strength without adding unnecessary weight.
- High dimensional stability with reduced warping for precise results.
- Matte color that conceals layer lines and enhances appearance.
- Prima SELECT PC-CF is perfect for creating durable prototypes and high-performance parts for industries such as aerospace, automotive, and electronics. It is also an excellent choice for demanding DIY projects that require strength and durability.
Basic Data Printing Parameter
| Material | PC |
| Diameter | 1,75 mm |
| Weight | 1,00 kg |
| Length | 315 m |
| Color | Black |
| Recommended Min Print Temp | 270 ºC |
| Recommended Max Print Temp | 300 ºC |
| Recommended Min Bed Temp | 70 ºC |
| Recommended Max Bed Temp | 100 ºC |
| Recommended Min Print Speed | 40 mm/s |
| Recommended Max Print Speed | 250 mm/s |
| General | |
| Specific Gravity | 1,32 g/cm3 ISO 1183 |
| Temperature | |
| Heat Deflection Temp | 102 °C ISO 75 |
| Tensile | |
| Tensile modulus | 5000 MPa ISO 527 |
| Flexural | |
| Flexural Strength | 125 MPa ISO 178 |
| Flexural Modulus | 4500 MPa ISO 178 |
| Other | |
| Impact Strenght Un-notched | 25 KJ/m2 ISO 179 |
| Impact Strength | 5,5 KJ/m2 ISO 179 |
| Spool Type / Specs | |
 |
 |
| 1. PrimaSelect 2024 750g/1kg | |
| Ø Ds | 200 mm |
| Ø ds | 55 mm |
| Ws | 63 mm |
| DB | 222 mm |
| WB | 70 mm |
| HB | 210 mm |
| Box Material | Carboard |
