E3D Revo PZ Probe Voron

Revo PZ Probe™ Voron Coldside

Designed specifically for use with the Voron Stealthburner, Revo PZ Probe™ Voron integrates a bed levelling system inside a Revo Voron Heatsink, transforming your Revo nozzle into a bed probe – all within the same form factor.

Easy PZ Probing
PZ Probe is a piezoelectric element which converts vibrations into electrical signals and is triggered upon contact between the nozzle and the print bed. With PZ Probe you only need to calibrate your z offset once to accommodate for flexibility in your motion system, after that simply screw in (with only your fingers) a new nozzle, and PZ Probe does all the hard work for you…. Easy PZ!

Lightweight
Weighing in under 40g including the heatsink & cables, PZ Probe ensures that this set-up is significantly lighter than any other Stealthburner tool head and bed levelling sensor combo.

Perfect first layer
Using the Revo nozzle as probe ensures a precise bed levelling mesh, leading to a clean first layer, the pre-requisite of any successful 3D print.

Easy Integration
The only new part to add to your existing Stealthburner set-up is a Flat Flex Cable, read more here about this super simple step. Check out SteveBuilds mount here, note that you will need 2 extra printed parts if you opt for this mount.
Read more technical information in our blog.

Compatibility: Revo PZ Probe Voron is compatible with Voron Stealth burner.

Please note: Make sure to read the technical datasheet in its entirety prior to installing the PZ Probe.

Pair with your perfect Hotside
Pair your Revo Voron Coldside with one of E3Ds carefully curated Hotside packs to ensure your printing needs are met, straight out of the box. All Hotside packs come with your heating and sensing elements plus a variety of nozzles for you to start quick swapping with.

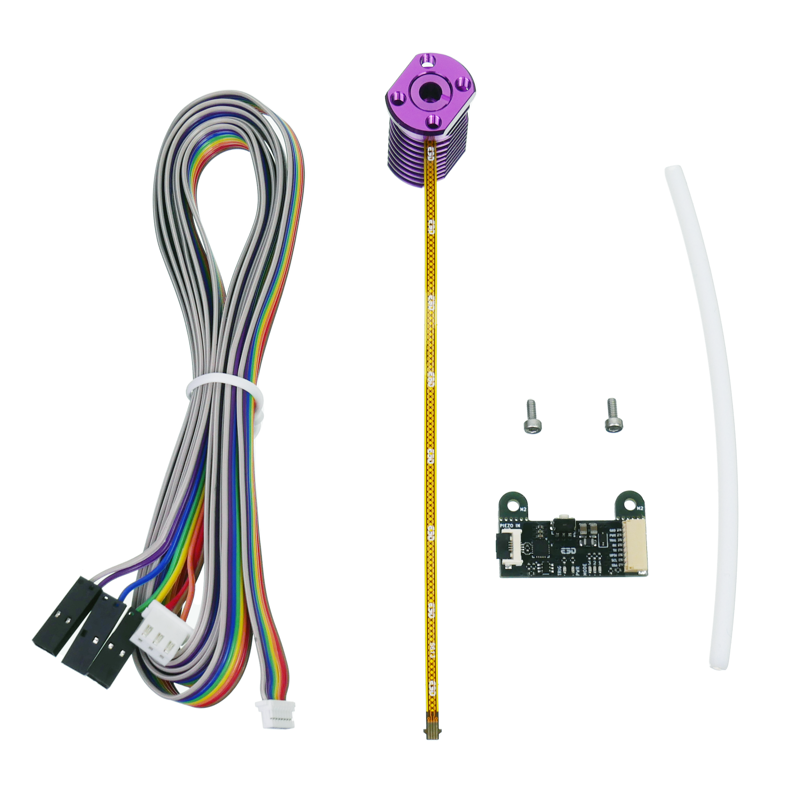

 Kit includes:
o    1 x Revo Voron Heatsink with an integrated Piezo
o    1 x PZ Probe Board
o    1 x Extension cables
o    2 x M2 Board Mounting Screws
o    1 x Bowden tubing
