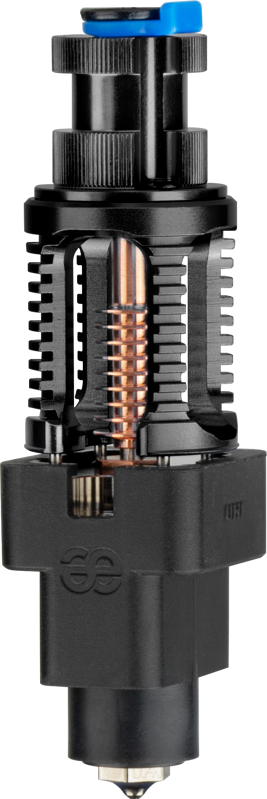

The Phaetus Dragon Hot-end UHF has numerous features that make it ideal for high temperature and fibre filament printing.
It is compatible with all V6 hot-end interfaces, Prusa i3 MK3/MK3S printers, Titan and BMG extruders.
Ultra-high-speed printing
The extended copper-alloy heater block is matched with an extended nut that allows for ultra-high extrusion throughput of up to 70.5 mm³/s.
Ultra-thin titanium alloy heatbreak
A thin-walled heatbreak with only 0.25 mm wall thickness and high wear resistance ensures excellent thermal insulation and less clogging.
Nozzle change with one hand
The titanium alloy screws have low thermal conductivity and enable one-handed nozzle changes.
Various flow rates - Seamless changeover
Switching between different flow rates does not require nozzle swapping, making it convenient and cost-effective.
High filament compatibility
The hotend is compatible with all thermoplastic filaments including but not limited to typical fibre composite filaments such as PLA, ABS, PETG, TPU, PP, PA, PEEK, PEI and PLA-CF, ABS-CF, PETG-CF, PA-CF/ GF, as well as composite filaments such as steel, wood, boron carbide, tungsten and fluorescent filaments.
Features & Advantages
- Ultra-high-speed printing
- Thin titanium alloy heatbreak
- Nozzle change with one hand
- High filament compatibility
- Incl. 0.4 mm plated copper nozzle
For all V6 hotend interfaces, Prusa i3 MK3/MK3S printers & Titan and BMG extruders
