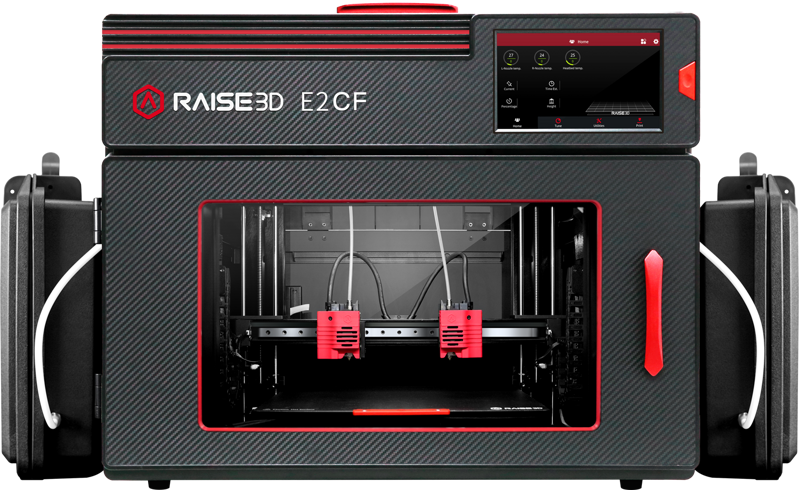

Raise3D E2CF
The Raise3D E2CF is a professional 3D printer with IDEX dual extruder designed to reliably process fiber reinforced filaments. 3D print industrial filaments on the E2CF, such as PA12 CF, PPA CF, PET CF, PPS CF and other Raise3D filaments. This 3D printer is excellent for prototyping, rapid tooling and additive manufacturing. In the future, third-party filaments will also be able to be processed on the Raise3D E2CF. To ensure process reliability, the E2CF can only process Raise3D certified filaments.The main features of Raise3D E2CF:Professional 3D printer with IDEX dual extruder – Optimized for processing carbon fiber reinforced filamentCarbon fiber reinforced filament has low density, high strength and is resistant to corrosion, static electricity and high temperaturesUse Carbon fiber reinforced filament in wide range of potential applications, such as mechanical engineering or the automotive, aerospace & defense industriesLike every Raise3D printer, the E2CF is perfectly crafted, user-friendly and reliable to use, ensuring optimal precision 3D printing Čtěte více

Na objednávku

144339,0001 Kč

Popis

Raise3D E2CF – Professional 3D printer with IDEX extruder optimized for 3D printing of carbon reinforced filaments

Professional 3D printers like the E2CF are high-quality and user-friendly 3D printers. They are equipped with features that ensure the best possible 3D printing results. For example, the E2CF has a flexible build plate that allows 3D printed parts to be easily removed without damaging the part during removal. Smart features like the flexible build plate, make the E2CF a user-friendly and professional 3D printer that is also suitable for beginners. Due to its power, the E2CF is also suitable for many industrial applications.

Main features Raise3D E2CF:

  • Nozzles with long resistance to abrasion
  • Optimized for user-friendly 3D printing of carbon fiber reinforced filament
  • Dual Direct Drive Extrusion System for reliable & uniform filament feeding
  • IDEX Extruder - 3D print two parts simultaneously in mirror or duplicate mode
  • Raise3D Industrielles PA12 CF Stützfilament
  • Filament Dry Box from Raise3D & HEPA Filter
  • Slicing Profile for ideaMaker
  • Easy maintenance thanks to intuitively replaceable printheads
  • Auto Bed Leveling, Integrated Camera, Power Failure Protection & Automatic Filament Detection
  • Improved leveling accuracy & full metal frame

Nozzles with high resistance

The new silicon carbide nozzles have excellent wear resistance and thermal conductivity. Due to the high resistance, the abrasion of the nozzles is effectively reduced by the carbon fiber composite filament. As a result, the Nozzle is more durable.

*Nozzles made of other materials suitable for carbon fiber filament 3D printing will be launched in the future.

Dual direct drive extrusion system

The gears are made of high-strength steel and have been heat-treated for better wear resistance.

A custom tooth profile is used to hold the filament firmly in place. This ensures that it does not slip during extrusion. The force of the system has been optimized to ensure the stability of the 3D printing process at all times.

Engineered for 3D printing carbon fiber reinforced filament

On the E2CF, Raise3D's industrial PA12 CF filament and the necessary support material can be perfectly combined. In the future, other carbon fiber reinforced filaments will be available for the E2CF, such as Raise3D's PPA CF, PET CF, PPS CF (with a printing temperature between 280 and 300ºC). Third-party filaments certified by the Raise3D Open Filament Program, such as those from BASF and LEHVOSS, will also be available for the Raise3D E2CF at a later date.

*The E2CF only supports approved filaments and print profiles. For the complete list, please refer to the technical datasheet or contact Raise3D.

Raise3D Industrial PA12 CF filament is reinforced with short carbon fibers and has excellent stiffness, strength, heat resistance, low warpage and low water absorption. At the same time, this material has an excellent strength-to-weight ratio. After baking, it acquires improved mechanical properties and dimensional stability, making it suitable as a substitute for metal in the manufacture of certain lightweight components.

Raise3D Industrial PA12 CF Support Filament

Raise3D Industrial PA12 CF Support Filament is a mechanically removable support material specifically designed for use with carbon fiber reinforced composite filaments. During the 3D printing process, it forms a stable support structure that provides good adhesion to the printed surfaces and counteracts warping. This significantly improves the surface quality of the overhangs and recesses of the printed objects. After 3D printing, the support structure can be easily removed or broken off from the printed parts. This support material has broad compatibility with many high performance carbon fiber reinforced composite filaments and is more cost effective compared to water soluble support material.

Raise3D Filament Drying Box

The built-in receptacles are used to perfectly place the filament and allow for a more consistent material feed. When closed, the filament dry box can effectively protect the material from dust and moisture for up to 30 days*.

*Based on Raise3D test data.

ideaMaker slicing profiles

The Raise3D E2CF has specific slicing profiles that have been repeatedly tested and verified by our engineers in ideaMaker. No need to adjust the parameters before 3D printing. Enjoy easy and high quality 3D printing.

As with the other Raise3D products, the E2CF combines mass production and intelligent 3D printing management with ideaMaker as the platform.



Construction an Technical Details
Usable Nozzle Type Raise3D E2CF
Usable Filament Diameter 1.75 mm
Max Nozzle Temperature 300 ºC
Open Filament System Yes
Extruder Type Direct drive
Recommended Printing Speed Max 150 mm/s ( Build Area 330 mm x 240 mm x 240 mm Dual Build Area 295 mm x 240 mm x 240 mm Build Plate Temp Max 110 ºC Build Plate Surface BuildTak Build Plate Material Flexible Steel Plate Build Plate Attachment magnetic Build Plate Leveling System Mesh-leveling with Flatness Detection Build Chamber During Process Open or Closed Filament Chamber Closed Yes
Extruder Number Of 2
Extruder Construction Type Dual IDEX - Independent Dual Extruders

Installation Space / Requirements
Total Mass Overall Dimensions 607 mm x 596 mm x 465 mm
Total Weight 32.4 kg
Ambient Operating Temperature 15°C
Max Power Consumption 350 W
Voltage AC: 100 V - 240 V, 2 A (50/60 Hz)   DC: 24 V

Equipment
Hepa Filter Yes
Door Sensor Yes
Filament Runout Sensor Yes
Power Loss Fail Safe Yes
Touch Screen Yes
Camera Yes
Memory Internal Yes, 8 Gbyte

Connection
USB Port Yes
Ethernet Port Yes
WLAN Yes
Cloud Control Yes

Accuracy
Layer Height 0.1 - 0.25 mm

Shipping
Shipping Weight 45.4 kg
