Popis
|
Product ID
|
Product Type
|
d (mm)
Inside Diameter |
D (mm)
Outer Diameter |
H (mm)
Width |
Dynamic Load
(N) |
Static Load
(N) |
Bearing
Clearance (μm) |
Max Speed
(rpm) |
Bearing Seal
Type |

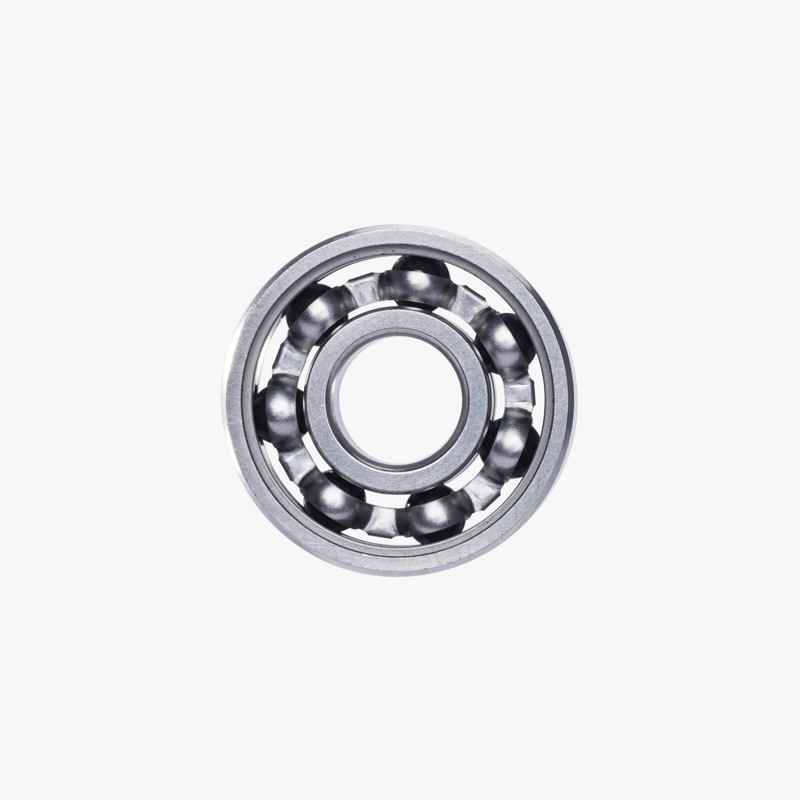

| EA028 | 608zz P5 | 8 | 22 | 7 | 3300 | 1370 | 10 | 32000 | Metal Shielded |
| EA029 | 608 Open Hybrid Ceramic | 8 | 22 | 7 | 3300 | 1370 | 10 | 32000 | Open |
| EA022 | R188 Open Hybrid Ceramic | 6.35(1/4") | 12.7(1/2") | 4.762(3/16") | 1083 | 438 | 10 | 48000 | Open |
Basic Information
| Ball Bearing Profile | High performance |
| Sealing Part Structure | Metal shielded/Open |
| Outer Ring Type | Flat |
| Bearing Construction | Single row |
| Inner & Outer Ring Material | POM/Bearing steel |
| Ball Type | Ceramic/Bearing steel |
Product Feature
-
Commonly used high-performance deep groove ball bearings
-
Higher precision for stable, durable rotation and higher load capacity
