3D Model
3D Model
|
Product ID
|
d (mm)
Inside Diameter |
D (mm)
Outer Diameter |
H (mm)
Thickness |
Dynamic Load
(N) |
Static Load
(N) |
| EB002 | 3 | 8 | 3.5 | 859 | 771 |
| EB003 | 4 | 10 | 4 | 799 | 771 |
| EB004 | 5 | 10 | 4 | 1025 | 1156 |
| EB005 | 6 | 14 | 5 | 1901 | 1960 |
| EB001 | 8 | 14 | 4 | 2155 | 1701 |
| EB006 | 8 | 16 | 5 | 3917 | 3394 |
| EB007 | 10 | 18 | 5.5 | 2470 | 3490 |

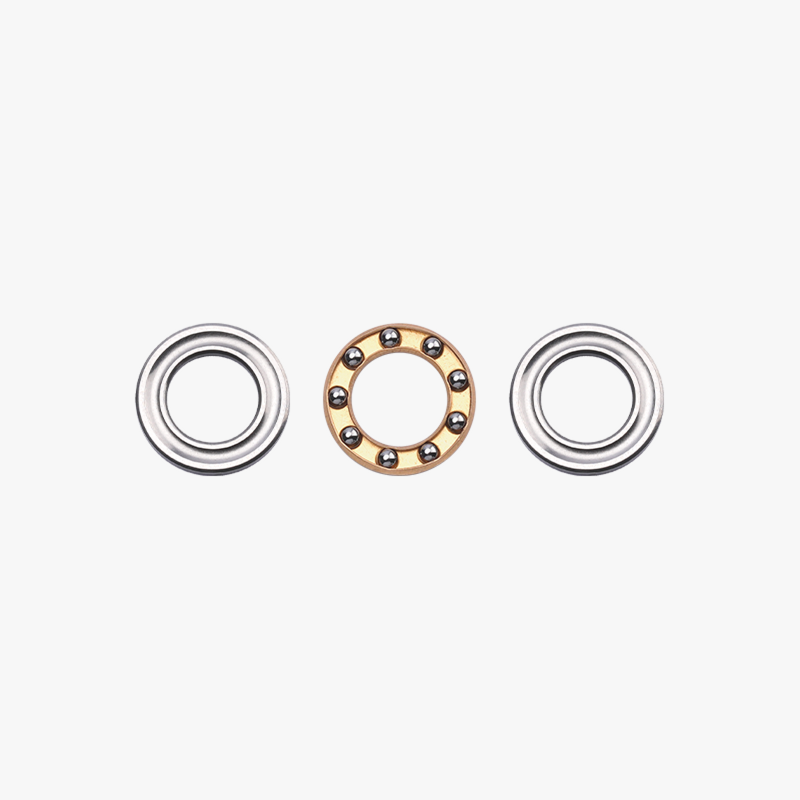

Basic Information
| Ball Bearing Profile | Standard |
| Cage Material | Brass |
| Washer Material | Steel |
| Bearing Type | Ball |
| Ball Material | Steel |
| For Load Direction | Thrust |
