Product Specifications
|
Product ID
|
Input
|
Rated Voltage
(V) |
Operating Voltage
(V) |
Torque
(G*CM） |
No Load Speed
（RPM） |
Rotating Direction
|
| LA002 | SH1.0-2P | 6V | 3V ~ 7V | 852.6 | 150 | CW |
| LA003 | SH1.0-2P | 6V | 3V ~ 7V | 350 | 400 | CW |
| LA004 | SH1.0-2P | 6V | 3V ~ 7V | 90 | 1000 | CW |
Introduction

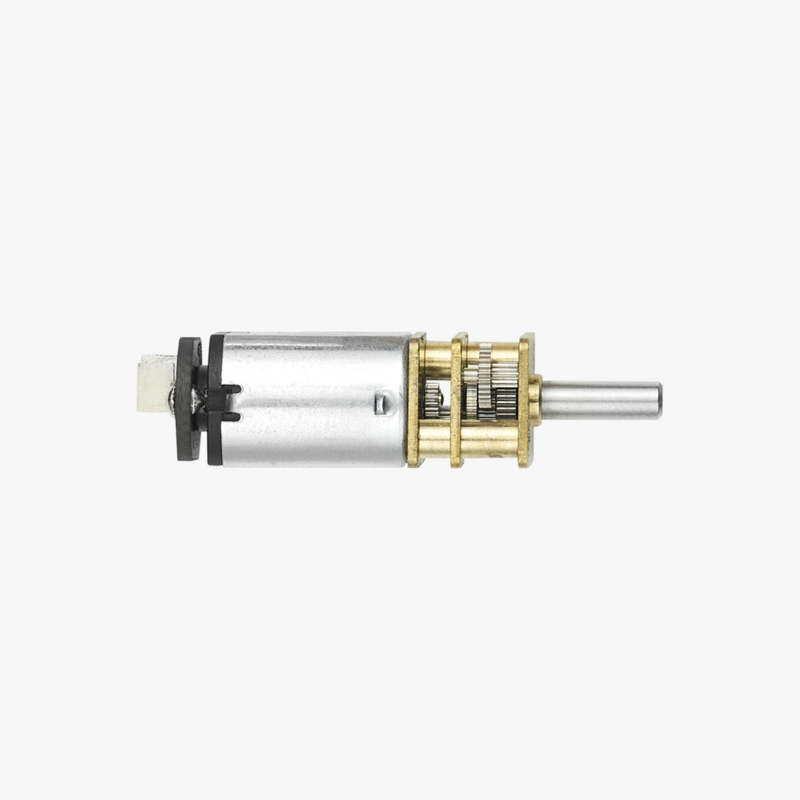

The N20 Reduction Gear Motor is a low-power reduction motor with a D-shaped output shaft, suitable for applications requiring continuous rotation of objects. This motor offers three speed options, including a low-speed version (150rpm), a medium-speed (400rpm), and a high-speed (1000rpm). The motor can be connected to the Power Distribution Board (PDB) with 4 Channels using the Wire Pair with SH1.0-2PIN-5CM/10CM/20CM.
In the box
| Item | Qty |
|
N20 Reduction Gear Motor |
1 |
|
Wire Pair with SH1.0 |
1 |
Considerations
-
Please use a power supply within the working voltage range.
-
Avoid immersing the motor in water or getting the motor wet.
-
Use screws of the appropriate length to secure the gearbox to prevent thread slippage or damage to the gearbox from screws touching the gears.
-
When using glue/adhesive to fix the motor, to prevent damage, do not let the glue/adhesive seep into the gearbox, shaft, or motor interior.
-
Regularly add a small amount of lubricant/grease to the gearbox to improve its lifespan and reduce noise.
