The Bambu Lab P1P Enclosure Kit packs all the parts needed to enclose the P1P 3D printer. After enclosing the P1P, the printer definition will remain the same. It is not possible to change the printer definition from P1P to P1S after the enclosure.

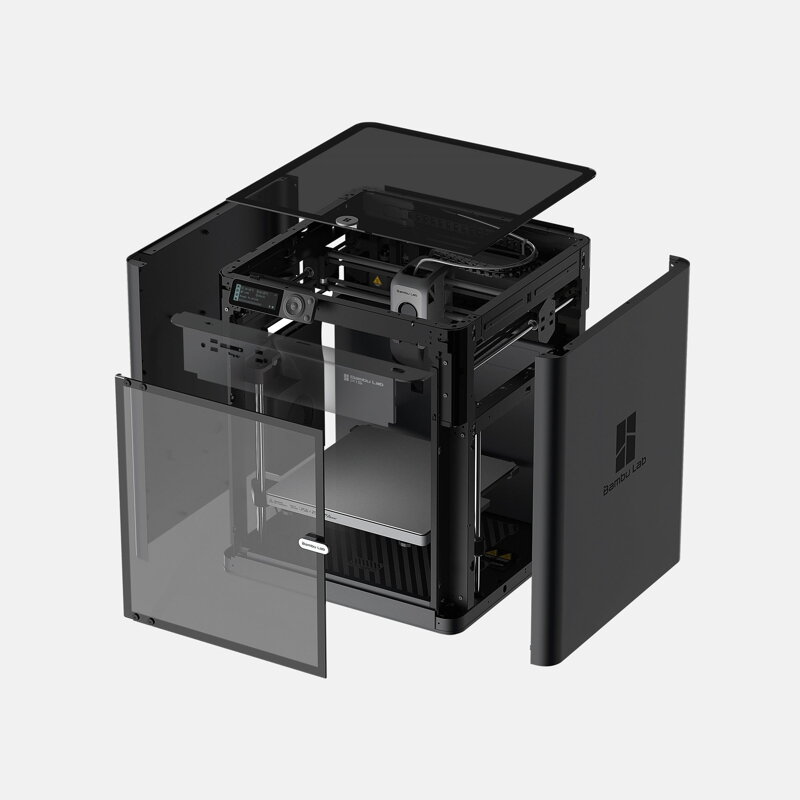

The glass cover plate, front glass door, left/right plastic panels, rear metal panel, front cover can enclose the P1P 3D printer.
The auxiliary part cooling fan, control board fan, and chamber temperature regulator fan can aid heat dissipation to achieve higher-speed printing.
The cable chain and P1S toolhead cable can ensure reliable performance during repetitive bending as a result of motion. The 550mm PTFE tube (for P1S and X1 Series) allows more ample movement of the filament and lowers the extra abrasion.
Please note that the Activated Carbon Air Filter is optional, and it is not included in the enclosure kit. If you have a need for printing ABS/PC/PA, you can add the Activated Carbon Air Filter to your purchase separately.
In the Box
1. Glass Cover Plate *1 (€ 31.99)
2. Front Glass Door *1 (€ 42.99)
3. Front Door Mounting Kit *1 (€ 16.99)
5. Right Plastic Panel *1 (€ 31.99)
6. Rear Metal Panel *1 (€ 20.99)
7. Front Cover *1 (€ 10.99)
8. Auxiliary Part Cooling Fan *1 (€ 31.99)
9. Control Board Fan *1 (€ 10.99)
10. Chamber Temperature Regulator Fan *1 (€ 16.99)
11. Cable Chain Assembly *1 (€ 12.99)
13. PTFE Tube *1 (€ 4.99)
Total Weight: 6.3 kg
Installation Guide
1. Please finish the installation of Cable Chain Assembly and P1S Toolhead Cable first by following the instructions on Bambu Lab Wiki.
2. Please throughly read the instruction article on Bambu Lab Wiki for the Enclosure Kit installation.
3. Please note that the left and right side panels of the P1P may be incompatible with the base and require shaving off two tabs on the bottom of the side panels for successful installation.
Two types of bases for the P1P model
We have two types of bases for the P1P model. One version comes with side panel tab slots, while the other version does not have these slots. It is possible that earlier shipments of the P1P model were of the older version without the tab slots, while recent and future shipments of the P1P will be of the newer version with the tab slots. Please check if your printer base has tab slots or not.
Two types of side panel
The side panels we shipped earlier also did not have tabs. Due to a change in production plans, the side panels we will be shipping in the near future and onwards will have tabs. If your printer base does not have tab slots but you received side panels with tabs, please remove the tabs from the side panels.
