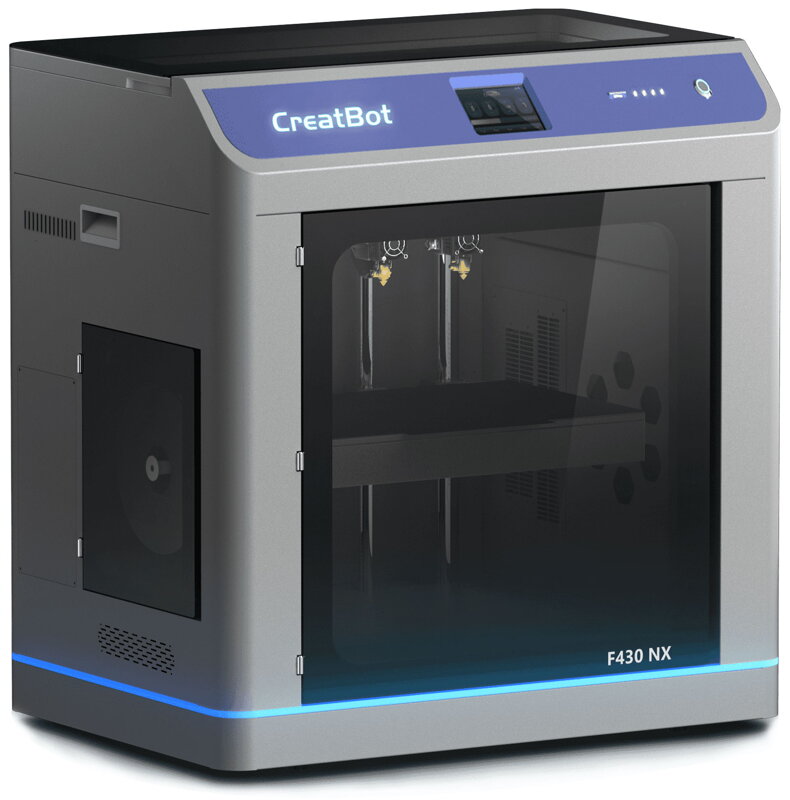

CreatBot F430 NX

Novinka v naší nabídce

CreatBot F430 NX

The CreatBot F430 NX is the next generation of professional-grade high-speed 3D printers, designed to meet the needs of engineers, designers, and professionals. With a large build volume, advanced dual-extrusion technology, and compatibility with a wide range of high-performance materials, this printer offers reliable, high-precision results for even the most demanding applications.HighlightsLarge build volume 400x300x300 mm (single mode)Supports engineering-grade materials like ABS, Nylon, and Carbon FiberIndependent dual extruders (IDEX) for versatile printing modesHeated chamber up to 70°C to prevent warpingHigh-speed printing up to 300 mm/sUser-friendly 5 touchscreen with WiFi connectivity Čtěte více

Na objednávku

195199 Kč

Přidat k Oblíbeným

Nejdříve se musíte přihlásit

Dotaz k produktu

Hlídací pes

Nejdříve se musíte přihlásit

Popis



Precision Engineering for Every Application

The F430 NX features an independent dual-extruder (IDEX) system, perfect for printing with support materials or creating complex multi-material parts. You can also use copy or mirror modes for faster production. With a nozzle temperature of up to 420°C and a heated chamber, this printer handles tough materials like UltraPA-CF and ASA with ease, ensuring top-quality results without cracking or warping.

Designed for High-Performance Materials

This printer is built for versatility, supporting a range of consumer and industrial filaments. From PLA and PETG to carbon and glass fiber composites, the F430 NX enables you to create durable, functional prototypes and parts with superior mechanical properties.

Built for Productivity

The large build volume makes it easy to produce substantial parts or multiple smaller components in a single run. The Z-axis is reinforced with precision ball screws and optical axes, ensuring stable, high-quality prints every time.

Simplified User Experience

A 5-inch capacitive touchscreen offers an intuitive interface for managing your prints. Additional features like WiFi connectivity, filament drying, and a built-in camera let you monitor and manage your projects conveniently, whether you’re in the office or on the go.

Reliable and Safe

Engineered with professional users in mind, the F430 NX includes advanced safety features like HEPA and carbon air filters, thermal runaway protection, and low-noise operation (50 dB). It’s built to run 24/7, making it the perfect tool for demanding environments.

Whether you’re developing prototypes, experimenting with advanced materials, or producing final parts, the CreatBot F430 NX combines power, precision, and reliability to elevate your 3D printing experience.



Construction an Technical Details
Compatible Filament Diameter 1.75 mm
Max Nozzle Temperature 420 ºC
Open Filament System Yes
Extruder Type Dual-gear direct drive
Recommended Max Printing Speed 300 mm/s (depends on material)
Build Volume 400 mm x 300 mm x 300 mm
Dual Build Area 360 mm x 300 mm x 300 mm
Max Build Plate Temp 140 ºC
Build Plate Surface PEI sheet
Build Plate Material Aluminum plate
Build Plate Leveling System mechanical switch
Build Chamber During Process Open or Closed
Build Chamber Heated Yes, max 70°C
Filament Chamber Closed Yes
Number of Extruders 2
Extruder Construction Type Dual IDEX - Independent Dual Extruders

Installation Space / Requirements
Overall Dimensions 780 mm x 550 mm x 800 mm
Net Weight 78 kg
Max Power Consumption 3200 W
Voltage AC: 110 V240 V (50-60 Hz)

Equipment
Hepa Filter Yes
Door Lock During Print Yes
Filament Runout Sensor Yes
Power Loss Fail Safe Yes
Touch Screen Yes
Camera Yes

Connection
USB Port Yes
Ethernet Port Yes
WLAN Yes

Accuracy
Layer Height 0.05 - mm

Shipping
Shipping Box 865 mm x 635 mm x 1055 mm
Gross Weight 107 kg
