Ready for Multi-Color Printing
Creality Hi is designed to work seamlessly with up to four Color Filament System (CFS) units, enabling multi-color prints with up to 16 colors. While the CFS units are sold separately, they can be added to expand the printers capabilities whenever youre ready.
Simplified Support Removal
With multi-material printing, support structures can be created using a separate material, making them easy to snap off or dissolve in water. This feature ensures clean, professional-looking models with minimal post-processing effort.
Built to Perform
The Creality Hi is engineered with a die-cast aluminum frame, providing the stability needed for precise prints. Linear rails on the X-axis and dual linear rods on the Y-axis enhance motion control, even at high speeds, ensuring reliable results every time.
Speed Meets Precision
Powered by step-servo motors with FOC algorithms, the Creality Hi achieves smooth, quiet operation at speeds up to 500mm/s. A maximum acceleration of 12,000mm/s² allows for faster production without compromising quality, making it perfect for both quick prototypes and detailed models.
Easy Setup and Operation
With 95% of the assembly completed at the factory, the Creality Hi is almost ready to use out of the box. A 3.2-inch touchscreen simplifies navigation and folds away when not in use, saving space. A guided setup ensures an easy start, even for those new to 3D printing.
Reliable Nozzle Design
The integrated tri-metal nozzle combines a hardened steel tip, titanium alloy heat break, and copper alloy body for durability and consistent performance. The quick-swap design makes maintenance straightforward and efficient.
The Creality Hi delivers a balance of speed, precision, and expandability, making it an excellent option for creators looking to invest in a high-quality 3D printing experience. Add CFS units when you’re ready to unlock its full multi-color potential.
| Construction an Technical Details | |
| Compatible Filament Diameter | 1.75 mm |
| Max Nozzle Temperature | 300 ºC |
| Open Filament System | Yes |
| Extruder Type | Direct drive |
| Recommended Max Printing Speed | 500 mm/s (depends on material) |
| Build Volume | 260 mm x 260 mm x 300 mm |
| Max Build Plate Temp | 100 ºC |
| Build Plate Material | Epoxy flexible build plate |
| Build Plate Leveling System | automatic |
| Build Chamber During Process | Open |
| Number of Extruders | 1 |
| Installation Space / Requirements | |
| Overall Dimensions | 409 mm x 392 mm x 477 mm |
| Net Weight | 8.75 kg |
| Max Power Consumption | 1150 W |
| Voltage | AC: 100 V240 V (50 Hz) |
| Equipment | |
| Hepa Filter | No |
| Filament Runout Sensor | Yes |
| Touch Screen | Yes |
| Camera | Yes |
| Connection | |
| USB Port | Yes |
| WLAN | Yes |
| Cloud Control | Yes |
| Accuracy | |
| Layer Height | 0.1 - 0.35 mm |
| Shipping | |
| Shipping Box | 650 mm x 460 mm x 240 mm |
| Gross Weight | 11.58 kg |

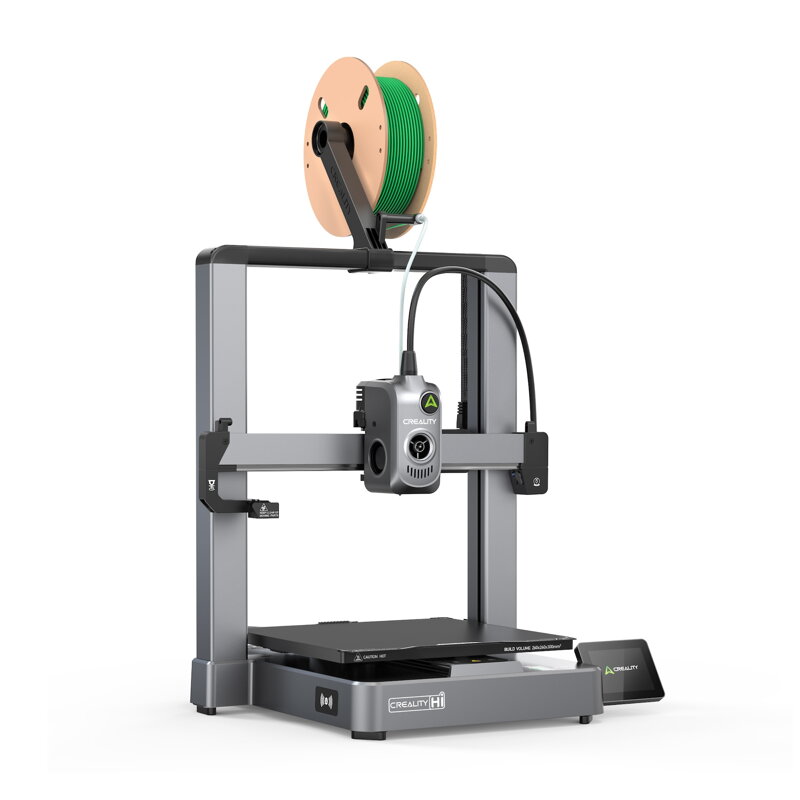

Creality Hi 3D Printer
