Auto Bed Leveling for Consistent First Layers
One of the standout features of the Ender-5 Max is its 36-point fully automatic bed leveling system. This ensures that the first layer is perfectly even every time, so you can start printing without worrying about adjustments.
Solid and Precise Construction
The frame of the Ender-5 Max is built with robust, die-cast aluminum alloy parts, providing the stability needed for high-quality prints. The X-axis features a precise linear rail, allowing smooth movement without any deviation. This setup ensures that prints are stable and accurate.
Dual Z-Axis Motors for Extra Precision
To improve print quality, the Ender-5 Max is equipped with two independently motorized Z-axes, each supported by linear rods. This setup allows the printer to handle larger loads, supporting models up to 10kg, while maintaining precision in the Z-axis movement
High-Speed Printing
For those who need speed, the Ender-5 Max can print at speeds up to 700mm/s, with a maximum acceleration of 20,000mm/s². This makes it one of the fastest printers in its class, without sacrificing the quality of the prints.
Large Build Volume
With an impressive 400x400x400mm build volume, the Ender-5 Max can handle both small batch printing and larger models. Whether you’re printing multiple parts or a single large model, the Ender-5 Max provides the space you need.
Fast Heating and Efficient Power Use
The Ender-5 Max is equipped with a 1000W heatbed that heats up to 80℃ in just 200 seconds. This allows you to get started faster and spend less time waiting for the bed to reach the right temperature. The new epoxy build plate requires a lower temperature for optimal adhesion, making it more power-efficient and easier to retrieve finished prints.
User-Friendly Features
The Ender-5 Max is equipped with a tri-color status indicator light, visible from up to 10 meters, so you always know the printer’s status. Green means it’s running, orange means it’s in standby, and red means there’s an error. Additionally, the printer offers Wi-Fi connectivity for easy file transfers and has a built-in 8 GB internal memory to store more files for your prints.
Optional Accessories
If you need more features, the Ender-5 Max is compatible with optional accessories like the official enclosure kit, which helps maintain a higher temperature for more demanding filaments, and an AI camera for real-time monitoring and time-lapse photography. The printer also supports Hyper PLA filaments, which provide better fluidity and faster cooling.
The Ender-5 Max offers a reliable, high-speed 3D printing experience with the capability to handle large projects and batch printing. Whether you're looking to print faster or need more space for bigger models, the Ender-5 Max delivers consistent results.
| Construction an Technical Details | |
| Compatible Filament Diameter | 1.75 mm |
| Max Nozzle Temperature | 300 ºC |
| Extruder Type | Direct drive |
| Recommended Max Printing Speed | 700 mm/s (depends on material) |
| Build Volume | 400 mm x 400 mm x 400 mm |
| Max Build Plate Temp | 100 ºC |
| Build Plate Material | Epoxy flexible build plate |
| Build Plate Leveling System | automatic |
| Build Chamber During Process | Open |
| Number of Extruders | 1 |
| Installation Space / Requirements | |
| Overall Dimensions | 649 mm x 721 mm x 850 mm |
| Net Weight | 25.9 kg |
| Ambient Operating Temperature | 5°C - 40°C |
| Max Power Consumption | 1250 W |
| Voltage | AC: 100 V240 V (50-60 Hz) |
| Equipment | |
| Hepa Filter | No |
| Filament Runout Sensor | Yes |
| Power Loss Fail Safe | Yes |
| Touch Screen | Yes |
| Connection | |
| USB Port | Yes |
| WLAN | Yes |
| Cloud Control | Yes |
| Accuracy | |
| Layer Height | 0.05 - 0.3 mm |
| Shipping | |
| Shipping Box | 732 mm x 679 mm x 410 mm |
| Gross Weight | 31.9 kg |

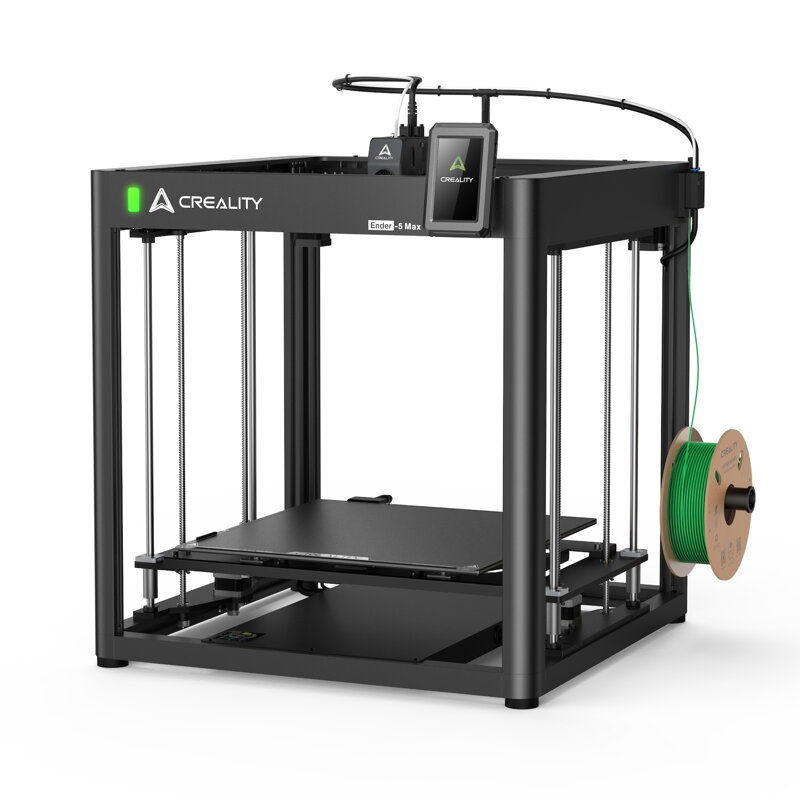

Creality Ender-5 Max
