Pre-installed Klipper Firmware for High-Speed Performance
The Neptune 4 Max comes with pre-installed Klipper firmware, providing exceptional printing speeds of up to 500 mm/s (default 250 mm/s) and accelerations up to 8000 mm/s². With an ARM 64-bit 1.5G quad-core processor, this printer ensures fast processing and smooth operation. The system also supports advanced features such as input shaping and pressure advance, which help reduce artifacts, filament ooze, and blobbing for better print quality. Acceleration sensors on the X and Y axes ensure automatic calibration, further enhancing print precision.
Klipper High-Speed Motherboard for Efficient Printing
The printer is equipped with a high-performance Klipper motherboard and a powerful ARM 64-bit processor, allowing you to achieve faster print speeds and more stable results. The 8GB ROM provides ample storage for various print files, while the acceleration sensors on the X and Y axes automatically calibrate resonance compensation for more accurate prints.
Spacious Build Volume for Larger Creations
With a generous build volume of 420 x 420 x 480 mm (16.53 x 16.53 x 18.89 inches), the Neptune 4 Max offers plenty of space for large models or multiple smaller parts in a single print. This allows you to create ambitious and complex projects with ease, making it perfect for a variety of applications.
300°C High-Temp Nozzle for Versatile Filament Support
The Neptune 4 Max features a 300°C high-temp nozzle with an extended hotend design, capable of handling a variety of filaments, including nylon. The 60W ceramic heating element and brass heating block ensure consistent and efficient heat distribution for stable printing results. With automatic calibration of the nozzle's PID parameters, the printer provides precise temperature control for a reliable and stable performance.
Powerful Extruder & Upgraded Hotend for Smooth Printing
The dual-gear direct extruder with a 5.2:1 reduction ratio ensures smooth and reliable filament extrusion. Weighing only 290g, the extruder provides accurate material flow, while the all-titanium alloy throat pipe allows for faster heat dissipation and reduces nozzle clogs. The high-power 60W ceramic heating element combined with the brass heating block ensures uniform heating, even during high-speed printing, for a smoother extrusion process.
Versatile Connectivity and Control
The Neptune 4 Max offers flexible connectivity options, including WIFI, U disk, and LAN transfer, making it easy to manage your printing projects. The printer supports WEB remote control printing and multi-machine network control, allowing you to monitor and control your prints remotely. Additionally, the one-key file transfer function simplifies the process of starting prints, providing a seamless user experience.
Construction an Technical Details | |
Compatible Filament Diameter | 1.75 mm |
Max Nozzle Temperature | 300 ºC |
Open Filament System | Yes |
Extruder Type | Dual-gear direct drive |
Recommended Max Printing Speed | 500 mm/s (depends on material) |
Build Volume | 420 mm x 420 mm x 480 mm |
Max Build Plate Temp | 80 ºC |
Build Plate Leveling System | automatic and auxiliary |
Build Chamber During Process | Open |
Number of Extruders | 1 |
Installation Space / Requirements | |
Overall Dimensions | 658 mm x 632 mm x 740 mm |
Net Weight | 18.1 kg |
Ambient Operating Temperature | <25°C |
Voltage | AC: 100 V240 V |
Equipment | |
Hepa Filter | No |
Filament Runout Sensor | Yes |
Power Loss Fail Safe | Yes |
Touch Screen | Yes |
Connection | |
USB Port | Yes |
Ethernet Port | Yes |
WLAN | Yes |
Accuracy | |
Layer Height | 0.1 - 0.4 mm |
Shipping | |
Shipping Box | 800 mm x 690 mm x 290 mm |
Gross Weight | 21.8 kg |

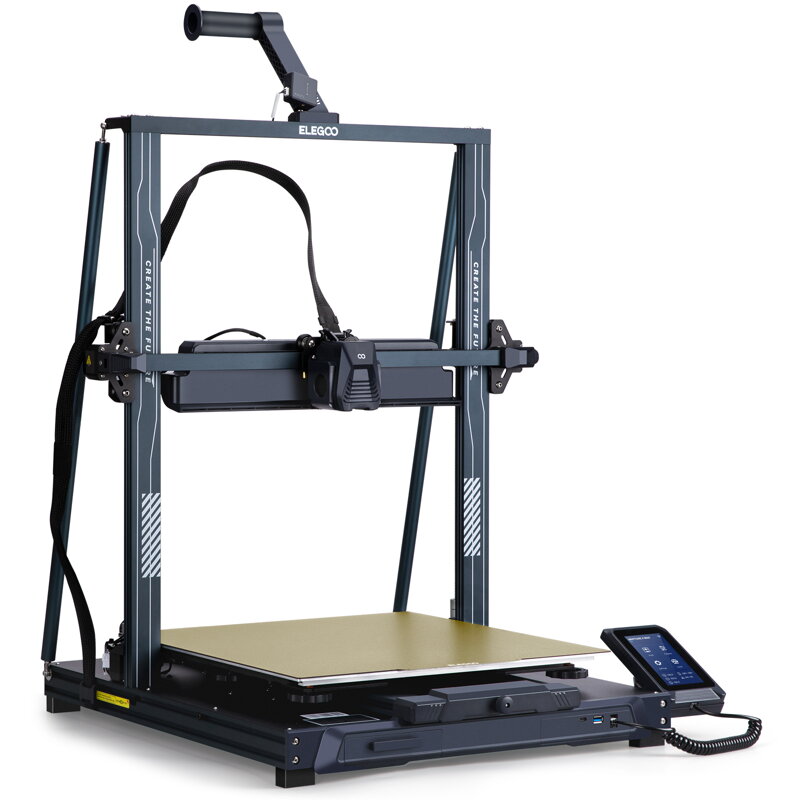

Elegoo Neptune 4 Max
