Blazing Fast Printing with Tilt Release Innovation
The Mars 5 Ultra offers exceptional speed, reaching up to 150mm/h. Its tilt release technology enables rapid model peeling from the release film, allowing for faster prints without compromising precision or reliability. With adjustable print modes, users can balance speed and detail according to their needs.
True-to-Life 9K Resolution
Equipped with a 7-inch mono LCD featuring 9K resolution and 18μm XY accuracy, the Mars 5 Ultra captures intricate details with remarkable clarity. Its COB light source ensures 92% light uniformity, providing consistent and flawless print quality.
Hassle-Free Printing with Self-Check and Automatic Leveling
The Mars 5 Ultra simplifies setup with one-click automatic leveling, making it accessible for all users. The self-check function verifies that all components are working correctly before each print, reducing errors and ensuring reliable operation.
AI Camera for Intelligent Monitoring
An integrated AI camera actively monitors the printing process, detecting errors in real-time. Issues such as empty build plates or model warping are instantly flagged, allowing for immediate corrective action to prevent wasted prints.
Smart Sensor for Damage Prevention
The built-in smart mechanical sensor detects residue buildup, preventing potential damage to the LCD screen. Timely alerts for resin shortages and leveling issues help maintain efficiency and minimize material waste.
Real-Time Monitoring and Time-Lapse Recording
Users can monitor the printing process remotely and capture stunning time-lapse videos to document their work. This feature ensures transparency, troubleshooting ease, and a visually engaging way to showcase creations.
Enhanced Safety and Reliability
The Mars 5 Ultra includes an advanced overheat protection system that halts printing if LED temperatures exceed 80°C. Additionally, power-loss resume functionality allows printing to continue seamlessly after an outage, preventing wasted materials and lost progress.
User-Friendly Design for Seamless Workflow
The Mars 5 Ultra is built for convenience, featuring a quick-release build plate for effortless maintenance, replaceable resin tank lock screws to prevent clogs, and dual pour spouts for efficient resin handling. A reliable drip tray ensures a clean and safe workspace, making the printing process smooth from start to finish.
| Construction an Technical Details | |
| Resin Print Technology | UV LCD |
| Resin Display Type | monochrome LCD |
| Resin Display Resolution X | 8520 pixel |
| Resin Display Resolution Y | 4320 pixel |
| Build Volume | 153 mm x 78 mm x 165 mm |
| Build Plate Leveling System | automatic |
| Installation Space / Requirements | |
| Overall Dimensions | 260 mm x 268 mm x 451 mm |
| Net Weight | 8.8 kg |
| Voltage | AC: 100 V240 V (50-60 Hz) |
| Equipment | |
| Power Loss Fail Safe | Yes |
| Touch Screen | Yes |
| Camera | Yes |
| Connection | |
| USB Port | Yes |
| WLAN | Yes |
| Accuracy | |
| Layer Height | 0.01 - 0.2 mm |
| Shipping | |
| Shipping Box | 560 mm x 350 mm x 380 mm |
| Gross Weight | 11.12 kg |

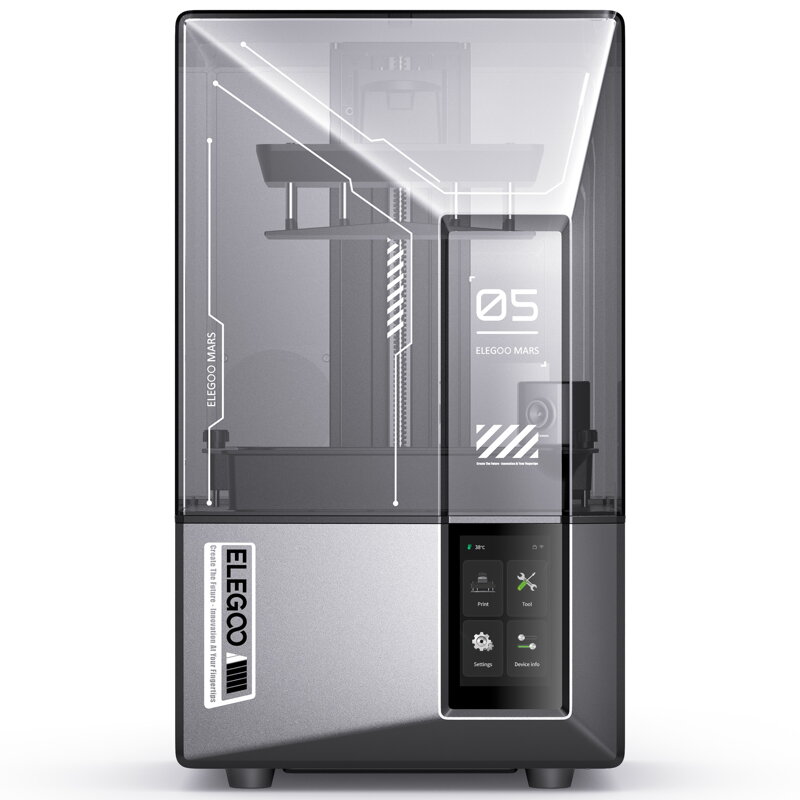

Elegoo Mars 5 Ultra
