Popis
|
Product ID
|
M (mm)
Nominal Diameter |
P (mm)
Thread Pitch |
L (mm)
Bolt Length |
D (mm)
Head Diameter |
H (mm)
Head Thickness |
k (mm)
Hexagon Across Flats |
t (mm)
Groove Depth |
Screwdriver Bit Size |
| AA001 | 5 | 0.8 | 12 | 9.5 | 1.3 | 3 | 1.2 | H3 |
*Compliant with the requirements of GB/T 70.1-2008 standard [Equivalent standards: ISO 4762, ASME/ANSI B 18.3.1M - 1986 (R1993), DIN EN ISO 12474]
Forgot the screw specs? Just print the Screw Gauge model from MakerWorld to help with sorting.
Basic Information
| Surface Treatment | Zinc-nickel alloy plating |
| Mounting Hole Shape | Hex socket |
| Screw Type | Complete thread |
| Material | Carbon steel |
| Thread Ridge Type | Metric coarse |
| Color | Silver |
Product Feature
-

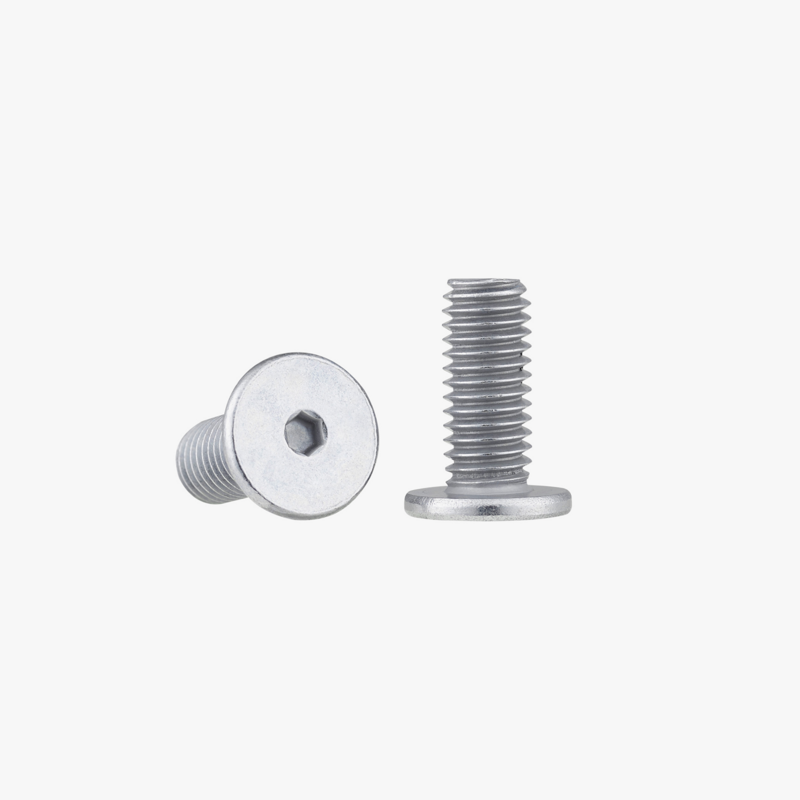

Carbon steel Socket Flat Head Socket Cap Machine Screw (FHCS)
-
Nominal thread: M2.5~M5
-
Strength grade: 4.8
-
Type of thread: Metric coarse thread (currently all screws are metric coarse thread)
-
Full thread series (except M3*23)
