Effortless Setup with Automatic Leveling
With one-click automatic leveling, the Mars 5 eliminates the need for tedious manual adjustments. Simply power it on, press a button, and start printing without delay.
Smart Sensor for Damage Prevention
The integrated smart mechanical sensor detects resin residue, preventing potential damage to the LCD screen. Additionally, real-time alerts for resin shortages and leveling issues help maintain efficiency and minimize material waste.
Reliable Printing with One-Click Self-Check
A one-click self-check system ensures all components are functioning correctly before each print, reducing errors and preventing failed prints. This feature saves both time and materials, providing a smoother printing experience.
High-Resolution Printing with 4K Mono LCD
Equipped with a 6.6-inch 4K mono LCD and an advanced COB light source, the Mars 5 delivers exceptional print quality with fine details and accurate textures. Whether you're working on intricate models or large-scale prints, this printer offers precision and reliability every step of the way.
| Construction an Technical Details | |
| Resin Print Technology | UV LCD |
| Resin Display Type | monochrome LCD |
| Resin Display Resolution X | 4098 pixel |
| Resin Display Resolution Y | 2560 pixel |
| Recommended Max Printing Speed | 69,98 mm/h (depends on material) |
| Build Volume | 143 mm x 89 mm x 150 mm |
| Build Plate Leveling System | automatic |
| Installation Space / Requirements | |
| Overall Dimensions | 230 mm x 230 mm x 433 mm |
| Net Weight | 6.6 kg |
| Voltage | AC: 100 V240 V (50-60 Hz) |
| Equipment | |
| Touch Screen | Yes |
| Connection | |
| USB Port | Yes |
| Accuracy | |
| Layer Height | 0.01 - 0.2 mm |
| Shipping | |
| Shipping Box | 540 mm x 300 mm x 340 mm |
| Gross Weight | 8.69 kg |

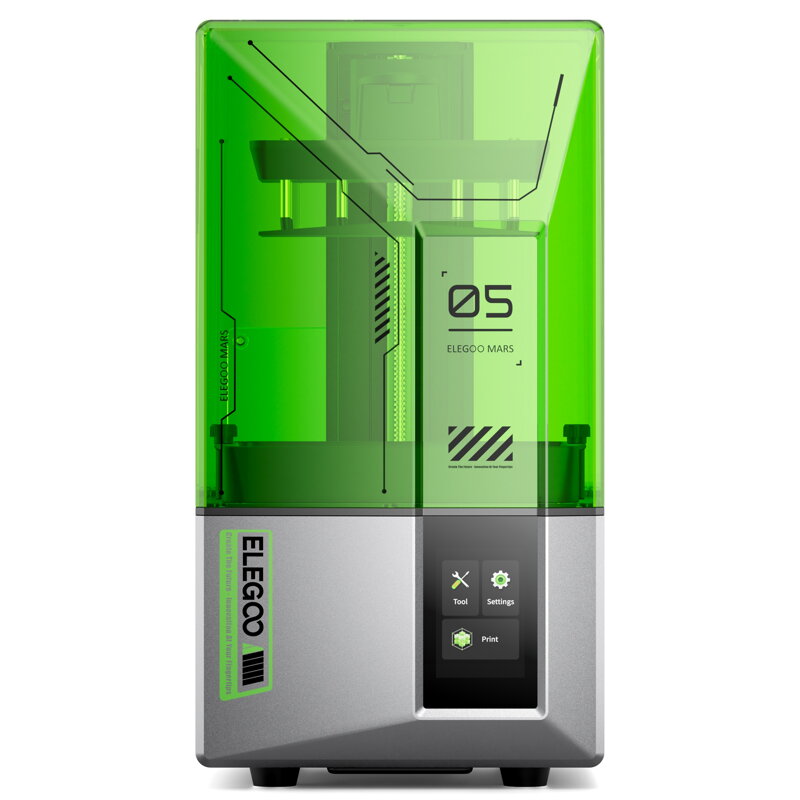

Elegoo Mars 5
