Exceptional Detail with 12K Mono LCD
The Saturn 4 is equipped with a 10-inch 12K mono LCD, offering an impressive resolution of 11520x5120 and an XY resolution of 19x24μm. This ensures that every print showcases stunning clarity and intricate details. The LCD is protected by 9H tempered glass, safeguarding it against scratches and damage for long-lasting performance.
Precision Printing with COB & Fresnel Collimating Lens
The combination of a COB light source and a Fresnel collimating lens ensures ultra-low astigmatism of just 0.5%, an outstanding field uniformity of 92%, and precise angle deviation control below 5°. These advancements contribute to consistently accurate prints with fine details and smooth surfaces.
Automatic Leveling for Effortless Setup
With its intelligent self-check and auto-leveling features, the Saturn 4 allows you to start printing right out of the box. Simply unbox, power on, and print – no tedious calibrations or manual adjustments required.
One-Click Self-Check
The Saturn 4 performs a quick self-check with a single click, verifying that all components are functioning correctly before each print. This minimizes errors and ensures reliable performance.
One-Click Automatic Leveling
Thanks to its advanced mechanical sensor, leveling the build plate is as simple as clicking a button. This feature saves time and effort, making 3D printing more accessible to users of all experience levels.
Smart Mechanical Sensor for Worry-Free Printing
The built-in smart mechanical sensor detects residual resin, preventing potential damage to the LCD screen. Additionally, it provides timely alarms for resin shortages and leveling failures, enhancing reliability and ensuring consistent print quality.
User-Friendly Design for a Seamless Experience
ELEGOO prioritizes user convenience with a well-thought-out design. The Saturn 4 features a quick-release build plate for easy maintenance, dual pour spouts on the resin tank for efficient handling, and a drip tray to prevent resin spills. Additionally, the replaceable tank lock and flip-up cover design offer effortless access and operation, making every step of the printing process smooth and enjoyable.
Construction an Technical Details | |
Resin Display Type | monochrome LCD |
Resin Display Resolution X | 11520 pixel |
Resin Display Resolution Y | 5120 pixel |
Recommended Max Printing Speed | 7 mm/h (depends on material) |
Build Volume | 219 mm x 122,88 mm x 220 mm |
Build Plate Leveling System | automatic |
Installation Space / Requirements | |
Overall Dimensions | 327 mm x 329 mm x 548 mm |
Net Weight | 13.5 kg |
Voltage | AC: 100 V240 V (50-60 Hz) |
Equipment | |
Touch Screen | Yes |
Connection | |
USB Port | Yes |
Accuracy | |
Layer Height | 0.01 - 0.2 mm |
Shipping | |
Shipping Box | 630 mm x 410 mm x 410 mm |
Gross Weight | 16.65 kg |

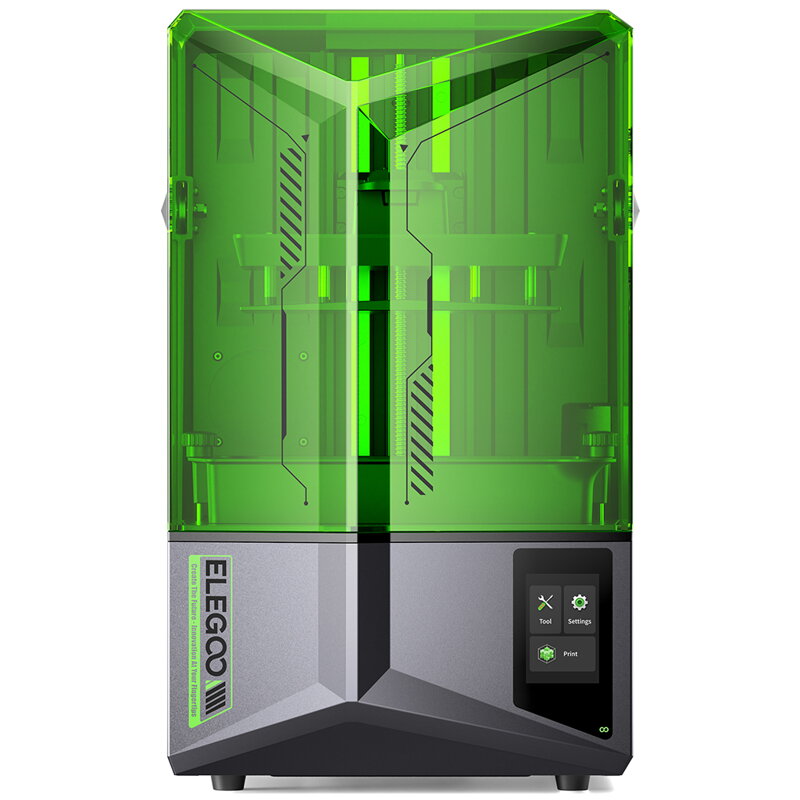

Elegoo Saturn 4
